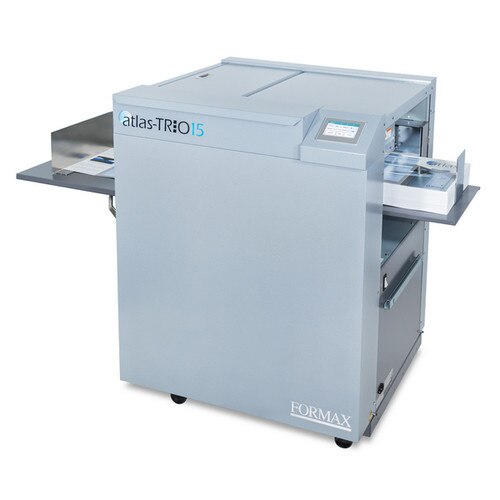

Formax Atlas-TRIO15 Multi-Function Slitter/Cutter/Creaser

Atlas-TRIO15

MULTI-FUNCTION SLITTER/CUTTER/CREASER

• Cuts, slits, and creases in a single pass
• Stores up to 150 custom jobs
• 4" color touchscreen
• Up to 5,000 sheets/hour for single-crease
• Processes sheets up to 13" W x 27.5" L

The ATLAS-TRIO15 is ideal for on-demand finishing of jobs including business cards, postcards, brochures, and booklet covers. It slits, cuts, and creases in a single streamlined process, and handles sheets up to 13" W x 27.5" L, in weights up to 350gsm. The 4" touchscreen control panel allows users to store up to 150 custom jobs, and has three modes for operator convenience: Preset, Manual, and Flex mode for the greatest customization. Standard features include an automatically elevating feed table for accuracy, upper-belt tri-suction feeding system, double-feed detection, cut-mark sensor, side alignment guide, and two standard slitting guides. Custom slitting guides and a long sheet kit are also available.

DESIGN

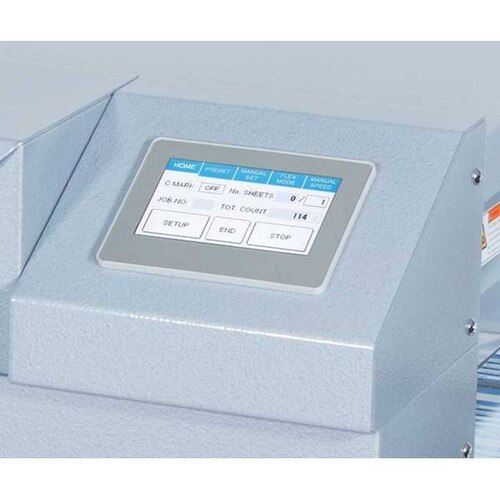

• 4" Color Touchscreen: Program and make adjustments easily with graphics-based menus

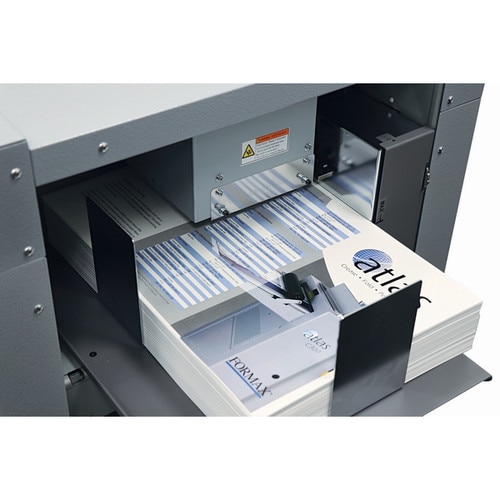

• Upper-Belt Tri-Suction Feed: Automatically elevates to separate printed sheets to prevent misfeeds

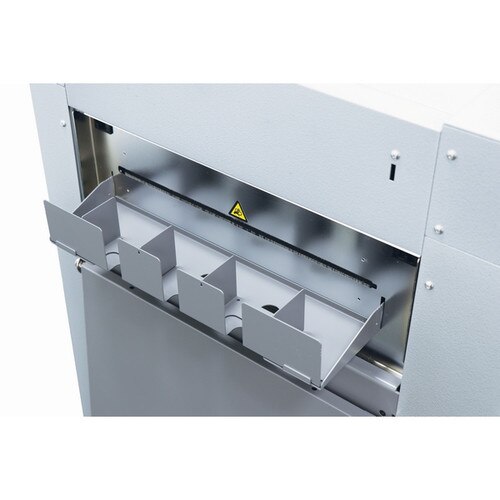

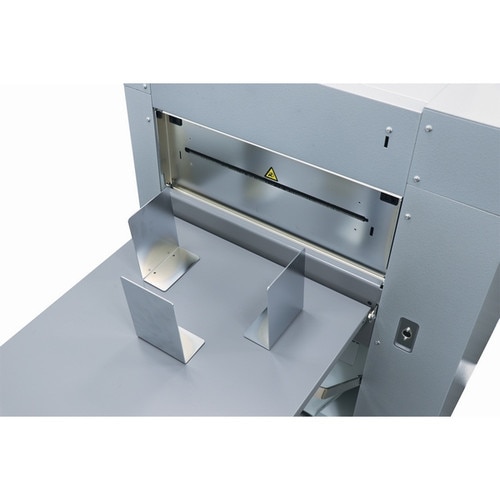

• Adjustable Catch Tray: Accommodates business cards and custom job sizes
• Cut-Mark Sensor: Reads any image drift, then registers to ensure consistent finishing
• Super Fast Processing: Cuts up to 250 business cards in less than two minutes

STANDARD FEATURES

• Cuts/slits up to eight 12x18" sheets/hour
• Creases up to 5,000 8.5x11" sheets/hour
• Upper-belt tri-suction feed system
• 4" color touchscreen
• Pre-set and programmable jobs
• Slit, cut and crease in a single pass
• Elevating feed table prevents misfeeds
• Two standard slitting guides
• Cut-mark sensor
• Double-feed detection
• Handles large and heavy stocks

OPTIONS

• Custom slitting guides: Designed to match specific job needs
• Long sheet kit: Accommodates paper sizes up to 13"W x 27.5" L

SPECIFICATIONS

* Speed varies depending on paper weight
