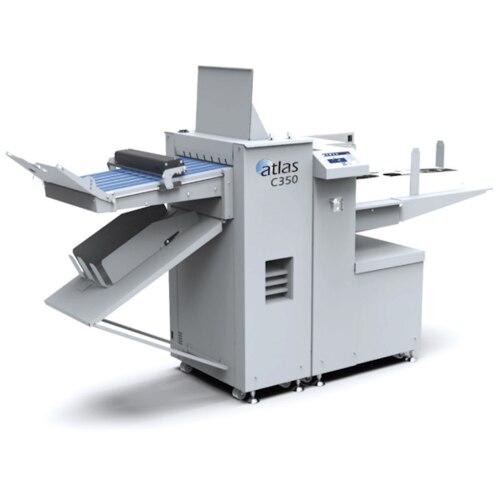

Atlas C350
HIGH-SPEED AUTOMATIC CREASER/FOLDER
- Fully automatic setup
- High-speed creasing & folding in a single pass
- Graphics-based color touchscreen
- Feed table extension for sheets up to 51" L
- Lifetime guaranteed creasing matrix
The Atlas C350 High Speed Creaser/Folder is a fully-automatic, user-friendly solution to the problem of cracking in toner-based digital prints. Its heavy-duty, lifetime guaranteed creasing matrices are easy to swap in just seconds, without tools. Setup is quick and easy: enter sheet length, weight and fold type using the intuitive color touchscreen and the Atlas C350 automatically calculates the crease locations. Operators can utilize pre-programmed creases, or save an unlimited number of custom jobs. The top-loading vacuum infeed adjusts automatically, and the feed table extension can handle sheets up to 51" long. Standard features include an in-line rotary perforation kit, which allows for creasing, perforating and folding in a single pass. Rugged metal construction and a compact footprint make it ideal for production facilities with limited space.
DESIGN

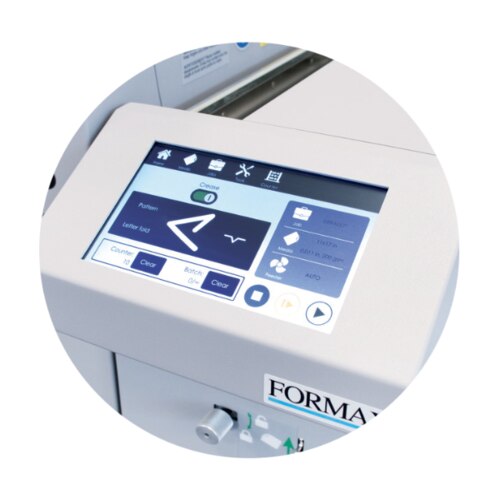

- Intuitive Color Touchscreen: User-friendly interface with bold icons makes setup quick and easy

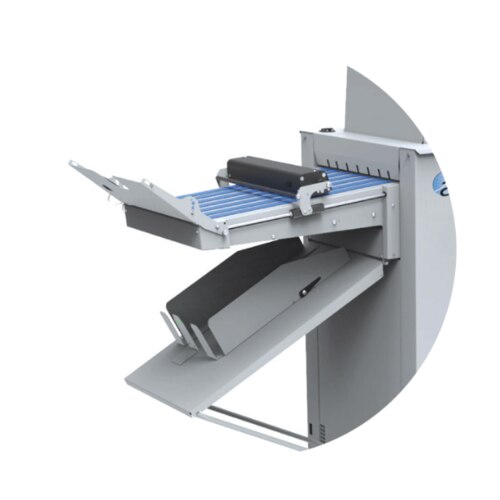

- Two-In-One Outfeed: Automatic belt feeder for folded sheets, catch tray for creased/perforated sheets

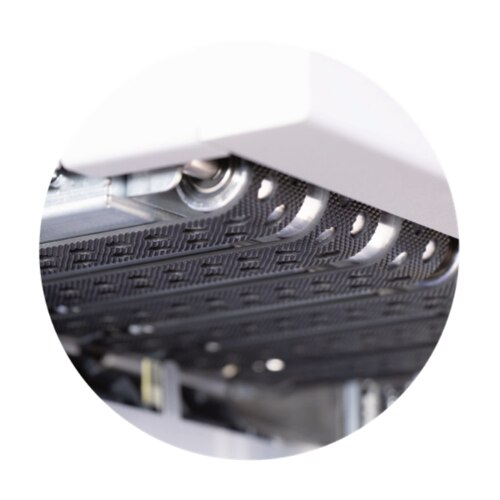

- Top Vacuum Feed: Controls sheet separation by constantly monitoring and making adjustments

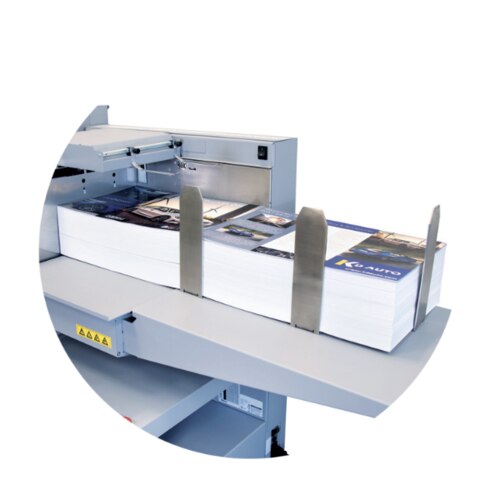

- Extendable Infeed Table: Infeed can be extended to fit media up to 51" long

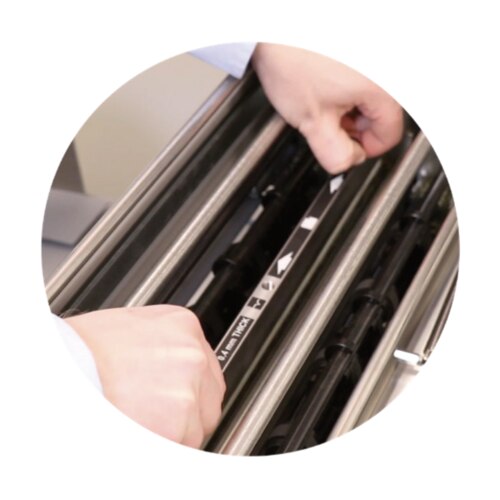

- Quick Change Creasing Matrix: Easy to swap in just seconds, with no tools required
OPTIONS
- Additional Creasing Matrix Kit: produces up/down creasing for hinges, book covers, and complex brochures, all in a single-pass**
- Cross/Partial Perforation Kit: Full/partial perforating along the width of the sheet
- Narrow/Ultra Narrow Creasing Matrix Kits
STANDARD FEATURES
- Fully automatic setup
- Color touchscreen control panel
- Vacuum top-feeding
- Two-in-one outfeed configuration
- High-speed processing
- Lifetime guaranteed creasing matrix
- Infeed table extension
- Handles media up to 51" L
- Unlimited programmable jobs
- Quick change creasing matrix kits
- Floating knife folding system
- In-line rotary perforation
- Rugged metal construction
SPECIFICATIONS
| Speed | Up to 6,000 sheets/hour, half fold Up to 7,500 sheets/per hour, single crease |
|---|---|
| Sheet Size | Min: 8.3" x 3.7" (211 x 94mm) Max: 27.6" x 15.2" (51" long w/extension) (701 x 386mm, 1295mm w/extension) |
| Paper Thickness | Max: 0.0157" (400gsm) Min: 0.0035" (75gsm) |
| Creases per Sheet | Up to 30 |
| Min. Repeat Crease Distance | 0.004" (0.1mm) |
| Programmable Jobs | Unlimited |
| Max. Loading Capacity | Stack up to 7.9" H (200mm) |
| Outfeed | Belt conveyor stacker, catch tray |
| Dimensions | 84" L x 29" W x 55" H (118" L w/extension) (2134 x 737 x 1397mm, 2997mm w/ext.) |
| Weight | 689 lbs (312kg) |
| Power | 100-240VAC, 8-4A, 50/60 Hz NEMA 6-15 (220V), NEMA 5-15 (110V) |
* Production speed varies based on material size and the number of creases per sheet
** Most perfect-bound book covers cannot be creased in a single pass
