Formax Atlas C150 High-Speed Automatic Creaser/Perforator
Details
Details
Atlas C150
HIGH-SPEED AUTOMATIC CREASER/PERFORATOR
- Feeds up to 8,500 sheets per hour
- Up to 30 creases per sheet
- Accommodates paper weights from 75-400gsm
- Fully automatic setup
- Heavy duty creasing/rule matrix

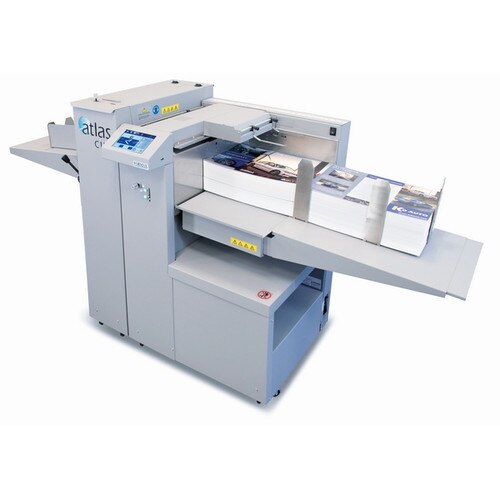

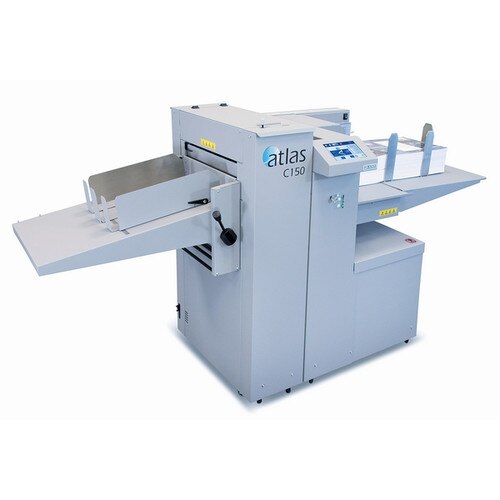

The ATLAS C150 High-Speed Automatic Creaser/Perforator is user-friendly solution to the problem of cracking in toner-based digital prints. It features a heavy-duty, lifetime guaranteed creasing matrix for accurate high-speed creasing. Using the intuitive touchscreen control panel, it automatically sets the crease locations, and users can easily store unlimited custom jobs. The top-loading vacuum infeed adjusts automatically to handle media stacks up to 7.8" high and weights from 75-400gsm. With its extra-long infeed table, it can handle sheets up to 51" long. An optional second creasing/perforating blade kit allows for single-pass up/down creasing and cross/partial perforation for hinges, book covers, and more. The rugged metal construction and compact footprint make it ideal for print facilities with limited space.
DESIGN

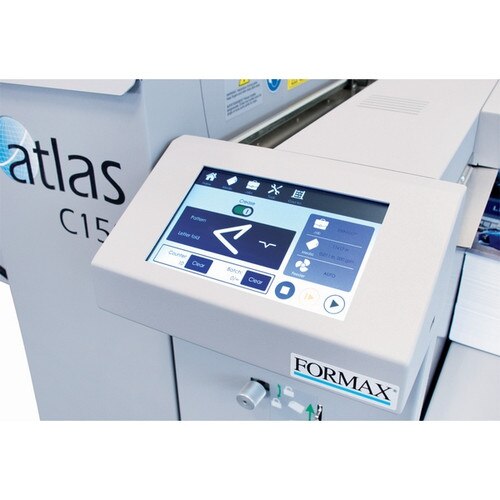

- Intuitive Color Touchscreen: User-friendly interface with bold icons makes setup quick and easy
- Top Vacuum Feed: Controls sheet separation by constantly monitoring and making adjustments
- Quick Change Creasing Matrix: Easy to swap in just seconds, with no tools required

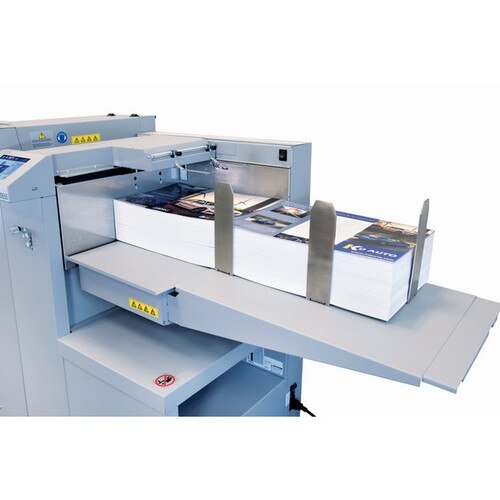

- Extra Long Infeed Table: Infeed can be extended to fit media up to 51" long
- Optional Second Crease/Perforation Kit: Allows for single-pass up/down creasing/perforation
STANDARD FEATURES
- Vacuum top feeding system
- Heavy duty creasing/rule matrix
- Color touchscreen
- Self-adjusting pile feed table
- Optical sensors
- Fully automatic setup
- Quick change creasing matrix kits
- Common jobs pre-programmed
- Unlimited programmable custom jobs
- Extended infeed table, media up to 51"
- Adjustable outfeed stacker
- Ultrasonic double sheet detection
- In-line rotary perforation
OPTIONS
- Additional Creasing Matrix Kit: Produces up/down creasing for hinges, book covers, and complex brochures, all in a single-pass
- Cross/Partial Perforation Kit: Full/partial perforating along the width of the sheet
- Narrow/Ultra Narrow Creasing Matrix Kits
SPECIFICATIONS
| Speed | Up to 8,500 sheets per hour |
|---|---|
| Sheet Size | Max: 27.5" x 15" (51" x 15" w/extension) (699 x 381mm, 1295 x 381mm w/ext) Min: 8.3" x 3.89" (211 x 99mm) |
| Paper Thickness | Max: 0.015" (400gsm) Min: 0.0035" (75gsm) |
| Creases Per Sheet | Up to 30 |
| Minimum Repeat Crease Distance | 0.0039" (.09mm) (depending on paper weight) |
| Programmable Jobs | Unlimited |
| Max. Loading Capacity | Up to 7.8" (198mm) (4" for sheets greater than 27.5" L) |
| Stacker Capacity | Up to 4.7" H (119mm) |
| Dimensions | 67" L x 29" W x 46" H (1702x736x1168mm) |
| With Feed Table | 100" L x 29" W x 46" H (2540x736x1168mm) |
| Weight | 551 lb (250kg) |
| Power | 100-240V, 50/60Hz, 8-4A |
