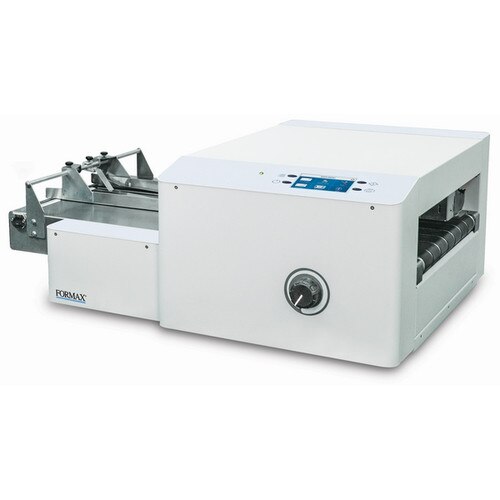

Formax AP4 High-Volume In-Line Digital Address Printer

AP4

HIGH-VOLUME IN-LINE DIGITAL ADDRESS PRINTER

Independent print heads with an image area of up to 4" H x 50" L can produce any of these layouts in a single pass:

• Address only on pre-printed envelopes
• Address and Return Address
• Address, Return Address, Indicia
• Address, Return, Indicia, Custom Tagline

The AP4 High-Volume Digital Address Printer processes up to 26,000 envelopes or up to 34,000 postcards per hour, with variable print resolutions up to 600 DPI. Designed to be used in-line, the infeed transport deck has positionable transport belts and guides running under the belts for incredibly accurate print registration at high speeds. Three independent print head banks offer an industry-leading 4-inch print area. Features include a color touchscreen, up to 16GB of job storage, on-screen ink monitoring, spot color capability, counters, USB 3.0/LAN connectivity, and the ability to print pieces up to 1/2" thick. It can be used with various feeders and existing mailing equipment, or with the AP12 Heavy Duty Friction Feeder.

DESIGN

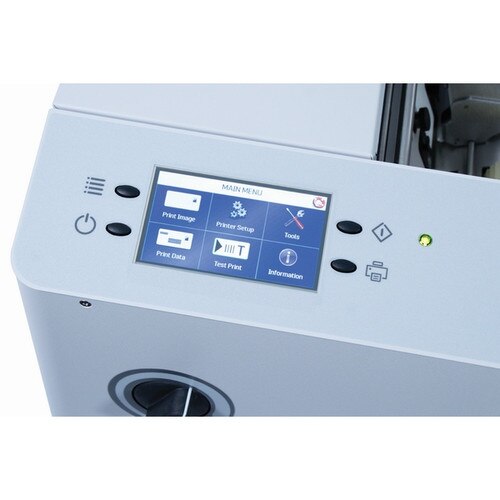

• User-Friendly Touchscreen
  • Color touchscreen with adjustable backlight and easy navigation
• AP4F System
  • Stand-alone unit with AP4 and AP12 Heavy Duty Friction Feeder

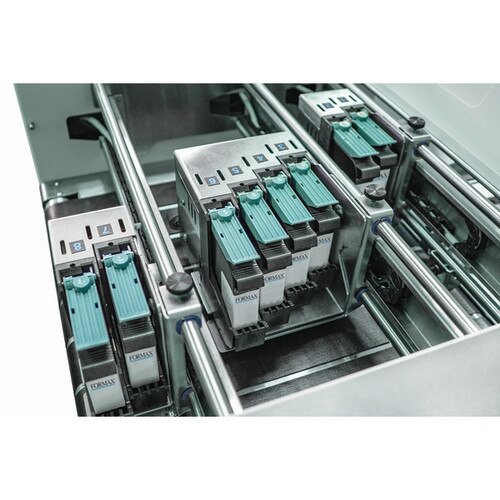

• 2 + 4 + 2 Stitched Print Heads
  • Three independent print heads for 8 high-capacity inkjet cartridges
• Optional AP12 Feeder
  • Heavy Duty Friction Feeder holds up to 500 envelopes
• Adjustable Print Head Height
  • Adjustable to accept media up to 1/2" thick with the dial on the side

OPTIONS

• AP-05 Bi-Directional Conveyor/Stacker
• AP12 Heavy Duty Friction Feeder
• AP14 Tabletop Riser Stand
• Bulk Mailer Software
• Thermal Inkjet Cartridges

STANDARD FEATURES

• 4.5" color touchscreen
• Prints up to 26,000 #10 envelopes per hour
• 2 pen + 4 pen + 2 pen stitched print head design
• Job memory up to 16GB
• Designed for in-line use
• Variable print resolution, up to 600 DPI
• Batch, job, and lifetime counter
• On-screen ink monitor
• Uses 8 high-capacity inkjet cartridges
• One-pass printing
• Imaging area up to 4" H x 50" L
• Up to 600 x 600 DPI
• Duty cycle up to 1,250,000 per month
• Prints up to 26,000 #10 envelopes/hour 2-pen + 4-pen + 2-pen stitched design
• TrueType enabled
• Spot color: blue, red, green, invisible
• Prints on coated and uncoated stocks

SPECIFICATIONS

* Printer ships with 4 AP22 high-capacity ink cartridges. Additional cartridges may be purchased separately.
