Product Description:
|

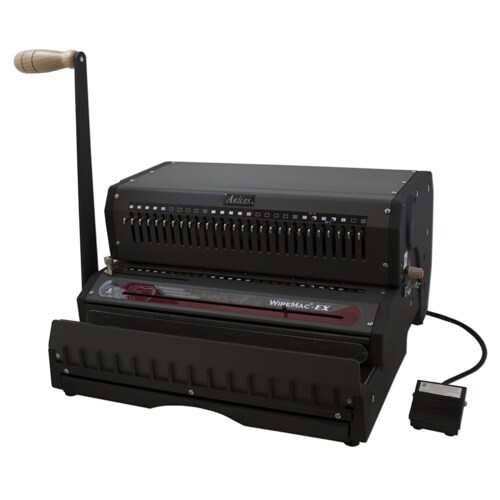

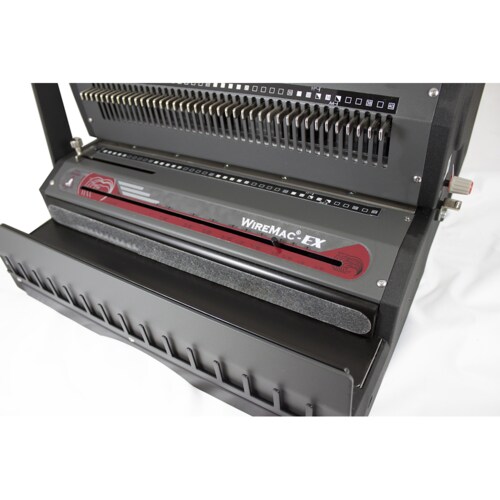

The Akiles WireMac EX 2:1 is an Electric Wire Binding Machine that is All-Metal, Heavy Duty, and built to last. Take your binding to the next level today!
- Master Selector: Precisely and quickly determine the appropriate pitch, wire size, closing position, and depth margin punching.
- Adjustable Depth Margin Control: Provide documents with the correct punched depth margin for optimal paper thickness and wire diameter ratio.

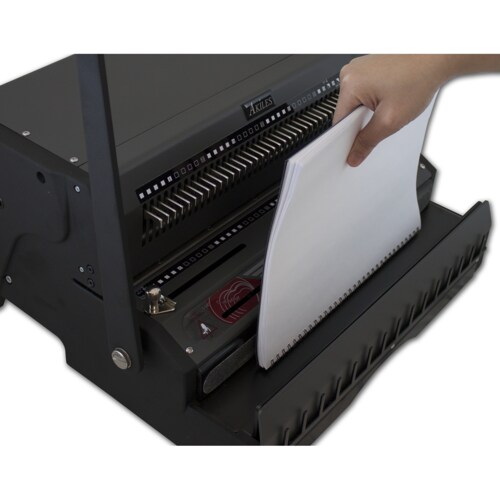

- Wire Holder: Hold the wire in position for quick and easy insertion of punched sheets onto the wire.
- Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.

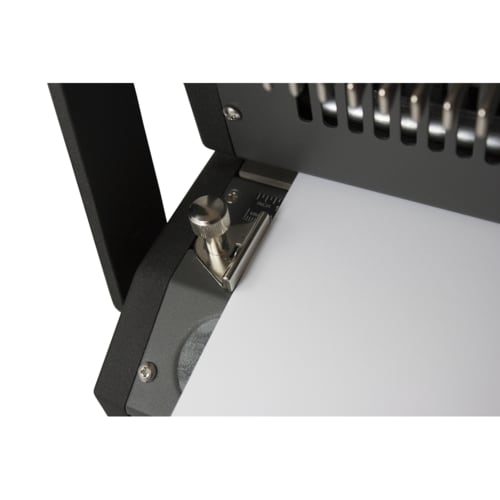

- Side Margin Control: Easy alignment of paper before punching.

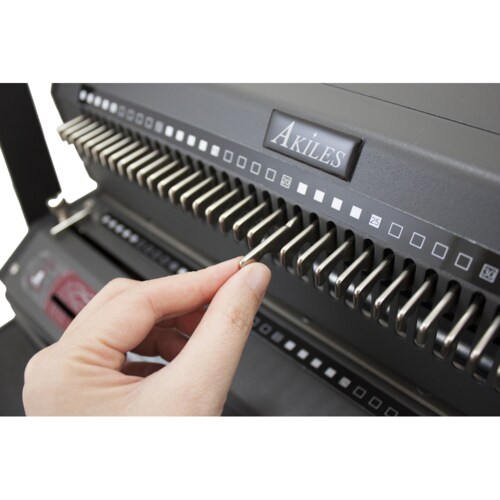

- Fully Disengaging Pins: Quick and easy adjustment of punching length.

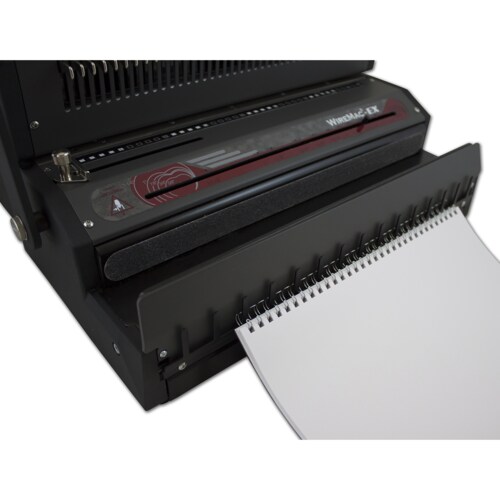

- Wire Closer Control: Accurate closer adjustment guarantees a perfectly bound document.
- Thumb Cut Punching: Specifically for binding calendars with hangers.
- Heavy-Duty Punch Motor : Heavy-duty motor with the thermal overload protection to prevent downtime.
- Manual Anti-Jam Function: For trouble free punching.
Available Punching Die Format
| Model |
Specification |
| Akiles WireMac-EX 31 |
Pitch 3:1 |
| Akiles WireMac-EX 21 |
Pitch 2:1 |
Product Specifications
Punching Capacity
| Model |
WireMac-EX 2:1 |
| Punching Mode |
Electric (Foot Pedal) |
| Punching Capacity |
25 sheets (20lb paper) |
| Punching Length |
14” with Open Throat for Longer Documents |
| Disengaging Dies |
All 27 |
| Binding Capacity |
3/16” to 1-1/4” |
| Machine Dimensions |
19" Wide, 16" Deep, 16" High |
| Machine Weight |
55lbs |
| Warranty |
1 Year |
To order the Akiles WireMac EX 2:1 Electric Wire Binding Machine by phone, call us at 1-866-455-9900.
|
 User Manual - Akiles WireMac EX 2:1 Electric Wire Binding Machine
|
|
|
|
|
