Product Description:
|

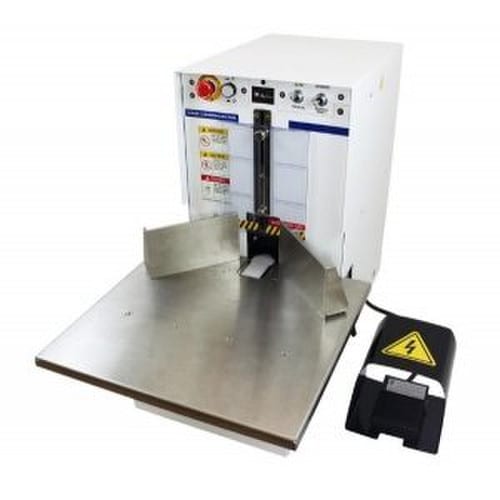

Heavy duty electric corner rounding machine. Rounds up to 600 sheets. The Diamond 6 & 7 are our top of the line, industrial grade, electric corner rounding machines. They are perfect for large volume jobs that require high productivity.
- Cuts up to 2.36" (60mm): The Diamond 6 cuts 2.36" or 600 sheets of 20 lb paper.
- 7 Interchangeable Dies: Available dies include 1/8", 1/4", 3/8", 1/2", 5/8", Straight, and Slot Die.
- Protective Safety Cover: Keeps your fingers safely out of the cutting area during use.
- Patented Die Design: Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts.
- Manual & Auto Mode: Switch between automatic foot pedal or manual hand operation with the flip of a switch.
- Tool & Scrap Box: Separate built-in storage bins for tools and corner scraps.
- Large Work Table
- Heavy-Duty Foot Pedal
| Model: |
Diamond 6 |
Diamond 7 |
| Maximum Capacity: |
2-3/8" (60mm) |
2-3/4" (70mm) |
| 600 Sheets (20 lb) |
700 Sheets (20 lb) |
| Included Die: |
1/4" |
| Available Dies |
1/8", 1/4", 3/8", Straight, and Slot Die (1/2" and 5/8" are Special Order) |
| Detachable Pressing Bar: |
No |
Yes |
| Protective Safety Cover: |
Included |
| Work Table: |
Included |
| Storage & Trash Bin: |
Included |
| Motor: |
100 W |
200 W |
| Dimensions: |
24-5/8" W x 12-5/8" L x 17-1/2" H |
| Weight: |
104 lbs |
110 lbs |
| Warranty: |
1 Year |
|
 User Manual - Akiles Diamond-6 Commercial-Duty Electric Corner Rounder Equipment
|
|
|
|
|
