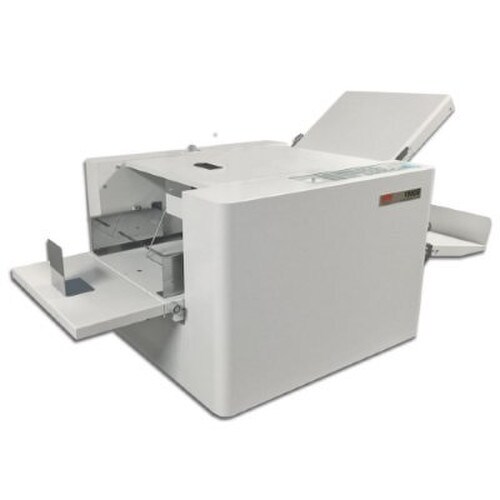

MBM 1800S Automatic Programmable Air Feed Tabletop Folder FO0623

SKU: MBM-1800S


The MBM 1800S is an automatic and programmable air feed tabletop folder perfectly suited for digital work. 30 custom folds and non-standard paper sizes can be stored in memory.

The 1800S by MBM is the new and improved model of the 1500S. The ultrasonic double feed sensor is new to this model and offers greatly improved functionality. The 1500S could not detect double feeds on black or transparent sheets, but the new 1800S detects double feeds on any white, printed, transparent, black or mixture of colored sheets. Also new to the 1800S is the removable folding roller for easy maintenance, the adjustable folding roller pressure, and a spring loaded feed angle adjustment dial.

The machine top cover opens and closes in two easy steps and the operator can now reach the air adjustment knob without disruption when the top cover is open. New “silver top” metal sheet for smoother paper run and better electric conductivity. Top feed, adjustable air suction feed system, suitable for digitally printed and coated stocks. The 1800S is pre-programmed with 6 standard folds, and stores 30 custom folds in memory. One-touch memory keys for custom folds. Non-standard paper sizes can be stored in memory.

The control touch panel includes 4 digit counter with batch and total functions. Test button folds 2 sheets for easy inspection. Features an extended exit tray for neat stacking of folded sheets. Automatic feed table ensures optimum feed pressure. Automatic conveyor belt and self-setting exit rollers ensure smooth ejection of folded paper. Single sheet feeding automatically maintained for different weights of paper. Display alert and audible signal in case of incorrect operation. Skew and micro-adjustment dials. All-metal construction. Optional micro-perforator, and scorer (available by calling us at 1-866-455-9900).

Dimensions (D x W x H): 24" x 49" x 23"
Weight: 189 lbs - Free Shipping!

Speed18,000* Sheets Per Hour
Paper Size4 1/2" x 8 1/4" to 13" x 19"
Paper Weight16 to 80 lbs*
Sheet Capacity800*
Electrical Requirements120 V, 60 Hz

* May vary due to variations in paper and power supply

Optional Features (call us at 1-866-455-9900 to order):

  • AC0647 - Micro-Perforator
  • AC0648 - Scorer
