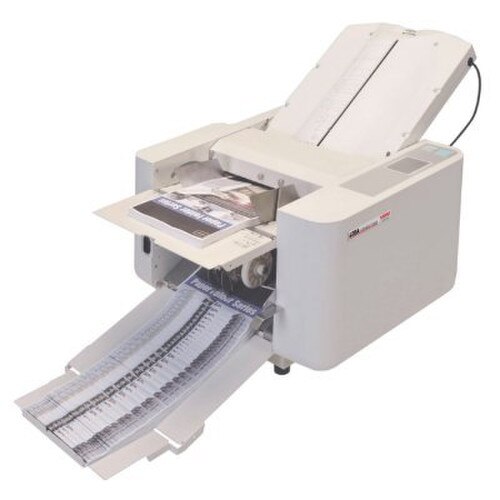

MBM 408A Automatic Friction Feed Folding Machine

$4,999.00
SKU: MBM-408A

Details

The MBM 408A is a dependable, automatic folder that comes pre-programmed with 36 standard folds. You can also store up to 12 custom jobs in memory for all your folding needs.

Designed with an automatic 3 roller friction feed system, the 408A is made for quiet operation and ease of use. The Color LED touch screen control panel includes 4 digit addition / subtraction digital counter, along with a Test button that folds 2 sheets for inspection. The built-in sensors automatically sense and display the paper size. An extended exit tray makes for neat stacking of folded sheets, while the automatic conveyor ensures smooth ejection of the folded paper.

Single sheet feeding is automatically maintained for different weights of paper, and an Auxiliary paper guide is included for easy cross folding. Loading and unloading the paper is convenient since you can do both from the same side. A display alert and audible signal sound in case of incorrect operation. Need to fine-tune something? The skew and micro-adjustment dials give you precise control for flawless folding.

The 408A's fully enclosed fold tables ensure quiet operation, and the quick-release roller system makes maintenance quick and easy. Optional scoring, micro-perforating, and slitting units are available by calling us at 1-866-455-9900.

Specifications:

Speed (Sheets/Hour):Up to 14,400*
Paper Size:3-1/2" x 5" to 11" x 17"
Paper Weight (lbs):12 to 80*
Paper Capacity:500* Sheets
Item Number:FO0604
Electrical Requirements:115 V, 60 Hz
Paper Folds:36 Pre-Programmed Folds, 12 Custom Slots
Dimensions:39-3/4" x 21-1/2" x 19-3/4"
Shipping Weight:76 lbs

*may vary due to variations in paper and power supply

Example Styles of Folds:
