Find the correct size Wire Binds you need (aka Twin Loop Wire-O) with our wire binding size chart or call us at 1-866-455-9900 for friendly help!
Twin Loop Wire Binds
These Wire Binds are sized to fit up to letter-size documents (8 1/2" x 11"). Browse the sizes below, pick your color, and give us a call with any questions at 1-866-455-9900 today! We also make Custom-Cut Wire in any available loop count you need.
Printable Wire-O Bind Size Guide
| 3:1 Pitch (3 Holes Per Inch) | ||
| Thickness of bound materials (including covers) | Wire-O® | Approximate # of sheets (based on 20lb. bond) |
| 1/8" | 1/4” Twin Loop Wire Binds 3:1 Pitch | 45 |
| 3/16" | 5/16” Twin Loop Wire Binds 3:1 Pitch | 60 |
| 1/4" | 3/8” Twin Loop Wire Binds 3:1 Pitch | 75 |
| 5/16" | 7/16” Twin Loop Wire Binds 3:1 Pitch | 90 |
| 3/8" | 1/2” Twin Loop Wire Binds 3:1 Pitch | 105 |
| 7/16" | 9/16” Twin Loop Wire Binds 3:1 Pitch | 120 |
| 2:1 Pitch (2 Holes Per Inch) For Special 2:1 Pitch Small & Medium Sizes, view the full list here: 2:1 Pitch Wire Binds | ||
| Thickness of bound materials (including covers) | Wire-O® | Approximate # of sheets (based on 20lb. bond) |
| 1/2" | 5/8” Twin Loop Wire Binds 2:1 Pitch | 135 |
| 5/8" | 3/4” Twin Loop Wire Binds 2:1 Pitch | 160 |
| 3/4" | 7/8” Twin Loop Wire Binds 2:1 Pitch | 190 |
| 7/8" | 1” Twin Loop Wire Binds 2:1 Pitch | 220 |
| 1-1/8" | 1-1/4” Twin Loop Wire Binds 2:1 Pitch | 280 |
| 1-3/8" | 1-1/2" Twin Loop Wire Binds 2:1 Pitch (Please make sure your wire machine can close/crimp 1-1/2" wire! Call us if you would like help checking at 1-866-455-9900!) | 310 |
To ensure you get the right size wire binds for your book, follow these steps: First stack all the book contents and covers together, and then measure how thick it is with a ruler. Then use the next wire size up and you'll be all set!

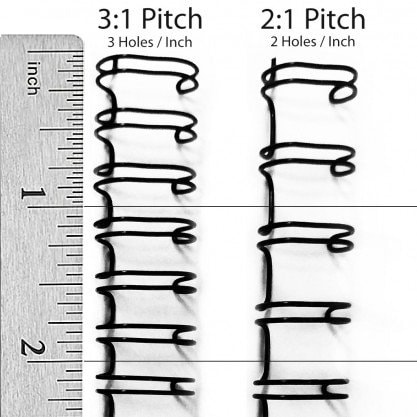

The difference between 3:1 & 2:1 pitch wire is how many loops per inch their are. While 2:1 binds are available in all wire sizes, you may prefer 3:1 for your small & medium size books for a better look.

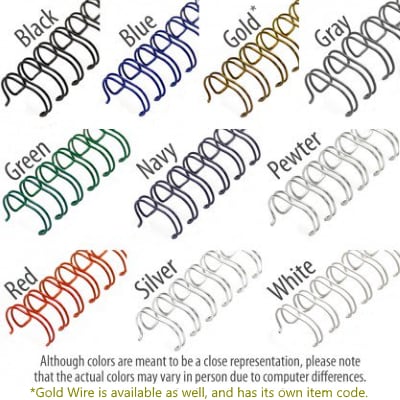

These colors are available for all the standard 2:1 & 3:1 wire sizes. Gold is available by using our site search under "gold wire".

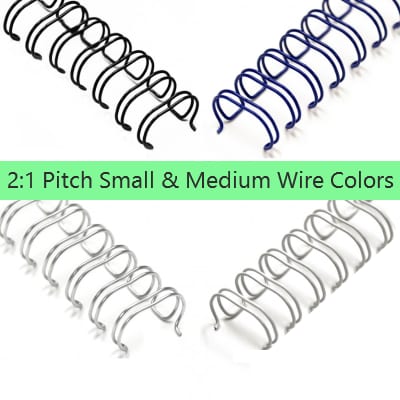

These colors are what we stock for the special 2:1 small & mid-sized wire binds (1/4" up to 9/16" 2:1 Pitch).
Call 1-866-455-9900 for even more colors, sizes, and options!
