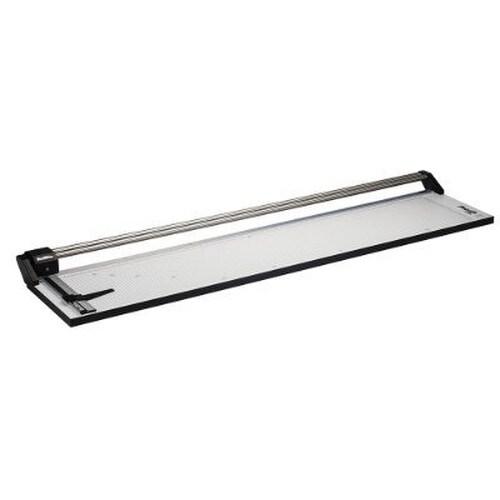

Rotatrim Pro Series 54" Professional Rotary Trimmer
Pro Series is the machine by which all others are judged
Originally designed with the photographer in mind, the heavy-duty use Pro Series has proven its durability and worth as an “all day, everyday use” trimmer in a variety of industries. Aside from the materials listed below, the Pro Series has been used to cut offset printing plates, packaging materials, polyethylene and even mount board – as well as for office finishing projects.
From mount board all the way down to tissue paper, the Pro Series accurately cuts all these substrates without a single adjustment to the machine.
The Rotatrim Pro Series is perfect for heavy-use cutting and trimming of flexible materials:
- Solid one inch thick baseboard and 1/12 inch edging strip provides extra stability and long durability
- Dual stainless steel guide rails eliminate cutting head swivel while delivering a smooth gliding action
- Self-sharpening, absolute precision steel blades
- All-metal end frames and head, and an aluminum square side rule
- 12”, 15”, 18”, 20”, 24”, 30”: up to 3mm cut capacity
- 36”: up to 2mm cut capacity
- 42”, 54”: up to 1.5mm cut capacity
Optional Stand & Waste Catcher Package:
- This convenient quality steel stand that supports the Rotatrim Pro Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.
Helpful Hints:
Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.
Perfect for Cutting Up to 3mm:
- Canvas
- Cellophane
- Cibachrome
- Cork
- Corrugated card
- Digital prints
- Encapsulations
- Felt
- Flexographic plates (.067")
- Floor graphics
- Heatseal
- Inkjet paper
- Laminations
- Photo paper
- Photo film
- Polyester
- Polystyrene
- Posters
- Reflective film
- Self-adhesive film
- Tissue paper
- Transparencies
- Veneers
- Vinyl
Outstanding Features of the Pro Series:
- Dual stainless steel guide rails completely eliminate cutting head swivel while delivering a smooth gliding action
- Solid one inch thick baseboard and 1/12 inch edging strip provides extra stability and long durability
Hand-Finished Flat Blades:
Crafted to incredible tolerances to two-thousandths of an inch.
To ensure accuracy and performance, the blades have a bevel ground into the cutting edge at a very precise angle to offer up the perfect contact point for the rotary blade.
Self-Sharpening, Long-lasting, Rotary Blades:
Ground to extremely tight tolerances twice and then deflashed to remove any edge burring.
An initial hollow grind places a concave profile to the inside of the blade and a chisel grind creates an angled bevel edge on the blade for precision and outstanding longevity.
Optional 36" Rule Extension:
- For improved accuracy and versatility. Fits all Rotatrim Pro sizes; model# 62325).
Optional Stand & Waste Catcher Package:
- 34" H Black finished Stand with an integrated, grey waste catcher.
Features:
- Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
- 12" rule supplied with adjustable squaring arm
- ISO9001:2008 quality certified
- 5 year general warranty on all parts
- 100% made in England
Rotatrim Pro Series Trimmers:
60100 | Rotatrim Pro Series 12" Professional Rotary Trimmer |
60110 | Rotatrim Pro Series 15" Professional Rotary Trimmer |
60120 | Rotatrim Pro Series 18" Professional Rotary Trimmer |
60125 | Rotatrim Pro Series 20" Professional Rotary Trimmer |
60130 | Rotatrim Pro Series 24" Professional Rotary Trimmer |
60140 | Rotatrim Pro Series 30" Professional Rotary Trimmer |
60150 | Rotatrim Pro Series 36" Professional Rotary Trimmer |
60160 | Rotatrim Pro Series 42" Professional Rotary Trimmer |
60170 | Rotatrim Pro Series 54" Professional Rotary Trimmer |
Stand & Waste Catcher Package:
62800 | Stand & Waste Catcher for 30" Pro Series (60140) |
62802 | Stand & Waste Catcher for 36" Pro Series (60150) |
62804 | Stand & Waste Catcher for 42" Pro Series (60160) |
62806 | Stand & Waste Catcher for 54" Pro Series (60170) |
Roll Dispenser:
62830 | Roll Dispenser for 30" Pro Series (60140) |
62831 | Roll Dispenser for 36" Pro Series (60150) |
62832 | Roll Dispenser for 42" Pro Series (60160) |
62833 | Roll Dispenser for 54" Pro Series (60170) |
Accessories and Cutting Wheels:
69105 | Replacement Cutting Wheel |
62315 | 24" Rule Extension Kit - Professional |
62325 | 36" Rule Extension Kit- Professional |
