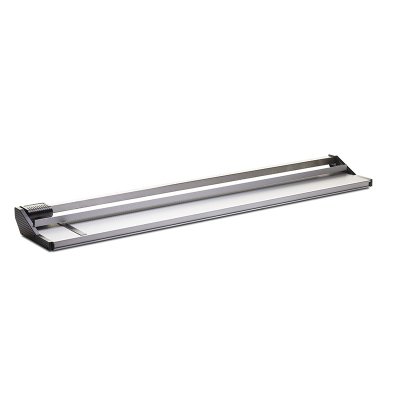

Rotatrim DigiTech+ 61" Rotary Trimmer
A superior heavy-duty trimmer
A heavy-duty “all day, everyday use” trimmer drawing from the design elements of the proven Professional, the DigiTech+ offers the same dynamic features, plus a very large format that cuts up to 100". Using the same self-sharpening, hand-finished tungsten steel blades as the Professional, the DigiTech+, like all Rotatrim trimmers, is engineered for total cut precision.
- A strong 1-1/4" stainless steel guide rail provides cutting head stability.
- A single roller mechanism results in lighter cutting action (maximum cut depth of 2mm).
- Extruded aluminum baseboard, end frames and head – plus an aluminum square side rule – ensures extreme robustness.
- An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
Optional Stand & Waste Catcher Package
- This convenient quality steel stand that supports the Rotatrim DigiTech+ Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.
Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.
Perfect for Cutting Up to 2mm:
- Corrugated card
- Digital prints
- Flexographic plates (.067")
- Floor graphics
- Inkjet paper
- Photo paper
- Photo film
- Reflective film
- Self-adhesive film
- Tissue paper
Outstanding Features of the DigiTech+:
- 1-1/4" stainless steel guide rail provides cutting head stability.
- Extruded aluminum baseboard, end frames and head – plus an aluminum square side rule.
- Single roller mechanism results in lighter cutting action.
- Maximum cut depth of up to 2mm.
Hand-Finished Flat Blades:
Crafted to incredible tolerances to two-thousandths of an inch.
To ensure accuracy and performance, the blades have a bevel ground into the cutting edge at a very precise angle to offer up the perfect contact point for the rotary blade.
Self-Sharpening, Long-lasting, Rotary Blades:
Ground to extremely tight tolerances twice and then deflashed to remove any edge burring.
An initial hollow grind places a concave profile to the inside of the blade and a chisel grind creates an angled bevel edge on the blade for precision and outstanding longevity.
Optional 36" Rule Extension:
- For improved accuracy and versatility. Fits all Rotatrim DigiTech+ sizes; model# 62326).
Optional Stand & Waste Catcher Package:
- 34" H Black finished Stand with an integrated, grey waste catcher.
Optional Stand Mounted Roll Dispenser:
- The Roll Dispenser attaches to the stand and waste catcher. Adjustable arm rods and cones allow for variable thickness and length rolls.
- Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
- ISO9001:2008 quality certified
- 5 year general warranty on all parts
- 100% made in England
||Rotatrim DigiTech+ 26" Rotary Trimmer
||Rotatrim DigiTech+ 38" Rotary Trimmer
||Rotatrim DigiTech+ 50" Rotary Trimmer
||Rotatrim DigiTech+ 61" Rotary Trimmer
||Rotatrim DigiTech+ 73" Rotary Trimmer
||Rotatrim DigiTech+ 85" Rotary Trimmer
||Rotatrim DigiTech+ 100" Rotary Trimmer
Stand & Waste Catcher Package:
||Stand & Waste Catcher for 26" DigiTech+ (60301)
||Stand & Waste Catcher for 38" DigiTech+ (60311)
||Stand & Waste Catcher for 50" DigiTech+ (60321)
||Stand & Waste Catcher for 61" DigiTech+ (60331)
||Stand & Waste Catcher for 73" DigiTech+ (60341)
||Stand & Waste Catcher for 85" DigiTech+ (60351)
||Stand & Waste Catcher for 100" DigiTech+ (60361)
||Roll Dispenser for 26" DigiTech+ (60301)
||Roll Dispenser for 38" DigiTech+ (60311)
||Roll Dispenser for 49" DigiTech+ (60321)
||Roll Dispenser for 61" DigiTech+ (60331)
||Roll Dispenser for 73" DigiTech+ (60341)
||Roll Dispenser for 85" DigiTech+ (60351)
||Roll Dispenser for 100" DigiTech+ (60361)
Accessories and Cutting Wheels:
||Replacement Cutting Wheel for all DigiTech+ trimmers
||36" Rule Extension Kit- Fits all DigiTech+ trimmers
