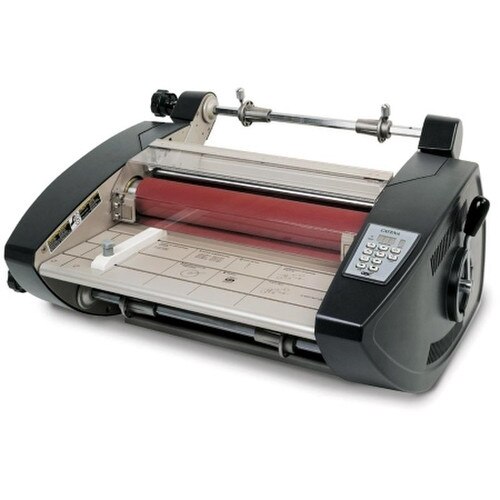

GBC Catena 35 - 12 Inch Thermal Film Laminator 1715830
|
| Item #:
GBC-Catena-35 |
|
|
|
 Ships via Truck |
|
Frequently Bought Together |
Expand - Choose Related Items:
|
|
Product Description:
|
GBC Catena 35
Thermal film laminator up to 12" wide. Versatile 12" tabletop lamination, encapsulation and mounting of digital output using thermal films to 10 mil.
GBC 1715830
- Infrared heat detection provides instant reaction to heat changes on the silicone rollers
- Mounting up to 3/16" thick.
- Silicone heat rollers for quality seal without scratching
- Instant reaction to heat changes on the silicone rollers
- Speed: 1.5 fpm-5 fpm (45.7 cm-152cm)
- Max. Roll OD 5"
- Core Diameter: 1"
- UPC: 033816064676
Specifications: |
| Model |
GBC Catena 35 |
| Maximum Doc Size |
12" |
| Speed |
1.5' - 5' per minute |
| Compatible Film |
1.5 - 10mil |
| Core Diameter |
1" |
| Dimensions |
25"W x 13"W x 18"D |
| Weight |
55 lbs |
| Warmup Time |
10 minutes |
| Adjustable Speed |
Yes |
| Warranty |
90 Day Manufacturer |
| Safety Approval |
UL, CE, CSA Listed, TUV Certified |
| Power Requirements |
120V, 60Hz, 12 amps |
|
 User Manual - GBC Catena 35 - 12 Inch Thermal Film Laminator 1715830
|
|
|
|
|
