GBC Catena 35 Thermal and Pressure Sensitive Roll Laminator, 12" Max. Width - 1715835

GBC Catena 35 Thermal & Pressure Sensitive Roll Laminator - 12" Max Width

The GBC Catena 35 is a versatile roll laminator designed for offices, small print shops, institutions, and other environments that need professional-quality laminating and mounting. Its compact design combines thermal laminating, mounting capabilities, intuitive controls, and convenient film-loading features to handle a wide range of finishing applications.

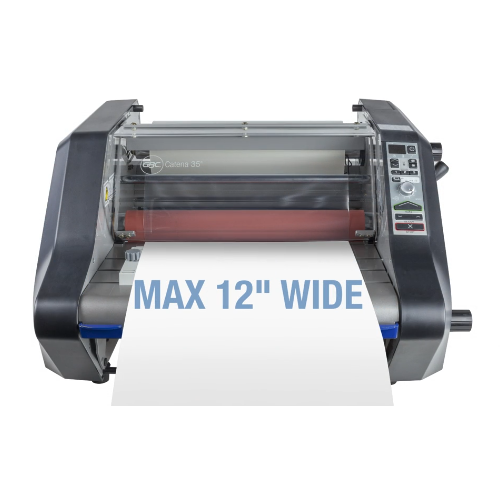

The Catena 35 accommodates projects up to 12" wide, including signage, maps, POP displays, and other laminated materials. An adjustable mounting gap also allows projects to be mounted to foam board up to 1/4" thick.

One-touch AutoSpeed automatically adjusts laminating speed, while the intuitive control panel includes programmable presets for storing commonly used temperature settings. Variable speed control ranges from 12" to 102" per minute, and adjustable temperature control heats up to 302°F.

Key Features

• Professional thermal and pressure-sensitive roll laminator
• Maximum document width of 12"
• Thermal laminating and mounting capabilities
• Mounts projects to foam board up to 1/4" thick
• One-touch AutoSpeed automatically adjusts laminating speed
• Variable laminating speed from 12" to 102" per minute
• Adjustable temperature control up to 302°F
• Programmable temperature presets
• Intuitive control panel
• Pivoting feed table simplifies film changes
• Lightweight aluminum film shafts
• Compatible with 1" and 2.25" film cores
• Compatible with film from 1.5 to 10 mil thick
• Optional rewind kit supports PSA film applications
• Rear stop button allows machine control while monitoring output
• Rear trimmer included
• Visual ready alert
• Compact design for environments with limited space
• Metal construction

One-Touch AutoSpeed

The Catena 35 features one-touch AutoSpeed operation to automatically adjust laminating speed. Variable speed capability ranges from 12" to 102" per minute, providing flexibility for different films and laminating applications.

Adjustable Temperature & Programmable Presets

An intuitive control panel provides adjustable temperature control up to 302°F. Programmable presets allow commonly used temperature settings to be stored for faster setup on repeat jobs.

Thermal Laminating & Mounting

The Catena 35 supports thermal laminating projects up to 12" wide and is compatible with GBC Standard Temp and Low Temp roll films from 1.5 to 10 mil thick. A mounting gap allows laminated projects to be mounted to foam board up to 1/4" thick.

Easy Film Loading

A pivoting feed table simplifies film replacement by eliminating the need to completely remove the table during film changes. The table can also provide a convenient place to rest film rolls during setup, while lightweight aluminum shafts make rolls easier to remove and install.

Pressure-Sensitive Film Capability

An optional rewind kit separates the release liner and enables the use of pressure-sensitive adhesive (PSA) films for cold applications, expanding the range of materials and finishing projects that can be handled by the Catena 35.

Convenient Output Controls

An additional stop button located at the rear of the laminator allows the operator to stop the machine while monitoring finished output. A rear trimmer is also included for convenient finishing after lamination.

Film Compatibility

Specifications
