Formax ReadyWire3M Premium Office Manual Punch & Wire Binding System 3:1 Pitch
Details
Details

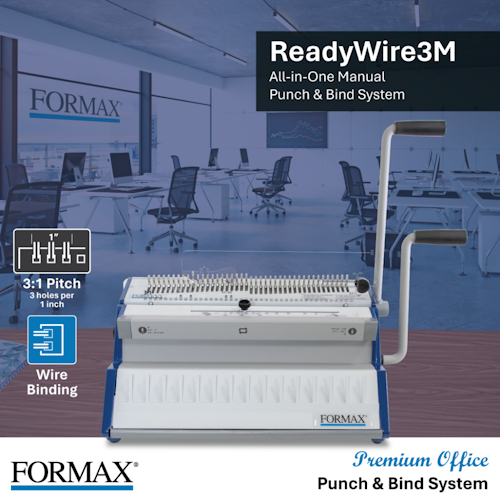

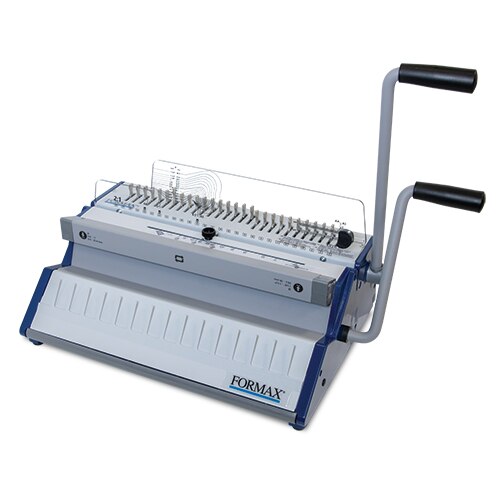

Formax ReadyWire 3M Manual Punch & Binding System - 3:1 Pitch
The Formax ReadyWire 3M is a heavy-duty, compact manual punching and binding system designed for offices and organizations with low to moderate binding volumes. Its rugged all-metal construction, smooth manual operation, and precision vertical punching system provide reliable performance while maintaining an easy, ergonomic workflow from punching through binding.
The precision vertical punching system uses gravity to help keep sheets properly positioned for consistent hole placement, even when working with larger document sets. Setup and adjustments are quick and easy with no tools required, while individually disengageable punch pins allow selected holes to be disabled to help prevent partially punched holes.
The ReadyWire 3M uses a 3:1 pitch format to produce professionally bound documents with a refined finished appearance. It accommodates double-loop wire diameters from 1/4" to 5/8" and can bind documents containing up to 135 sheets. Finished wire-bound documents open a full 360 degrees and lay flat for easier reading, writing, scanning, and presentations.
Key Features
- 3:1 pitch manual punching and binding system
- Heavy-duty compact design
- Rugged all-metal construction
- Designed for low to moderate binding volumes
- Precision vertical punching system
- Gravity-assisted sheet positioning for consistent hole placement
- Individually disengageable punch pins
- Tool-free access and adjustments
- Quick, easy adjustments
- Closure control adjustment
- Variable margin depth
- Depth gauge for a stronger bind
- Specially hardened punch pins
- Parallel adjustment for accuracy
- Integrated wire comb holding device
- Easy-empty sliding waste tray
- Smooth, quiet operation
- Supports wire diameters from 1/4" to 5/8"
- Binding capacity up to 135 sheets
- Finished documents open 360 degrees and lay flat
Specifications
| Model | ReadyWire 3M |
|---|---|
| Pitch | 3:1 |
| Punching / Binding | Manual |
| Punching Capacity | Up to 12,000 sheets per hour |
| Punching Width | 0.39" to 14" (10 to 360 mm) |
| Maximum Punching Thickness | Up to 0.08" (2.2 mm) |
| Punch Hole Dimensions | Square, 4 x 4 mm |
| Binding Speed | Up to 200 books per hour |
| Binding Capacity | Up to 135 sheets |
| Wire Diameter | 1/4" to 5/8" |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 22" W x 13" D x 17" H (560 x 330 x 430 mm) |
| Weight | 28.6 lb (13 kg) |

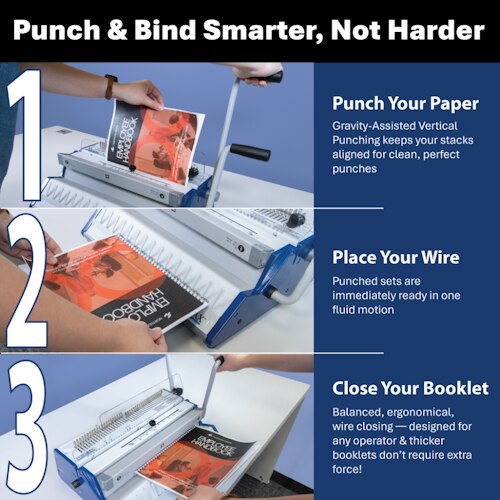

Precision Vertical Punching
The ReadyWire 3M uses a precision vertical punching system that utilizes gravity to keep sheets in place during punching. This helps provide consistent hole placement across document sets while accommodating punching widths from 0.39" to 14".
Flexible, Tool-Free Setup
Individually disengageable punch pins allow selected pins to be disabled when necessary, helping prevent partially punched holes. Access to the punch pins requires no tools, and quick adjustments help simplify setup between binding jobs.

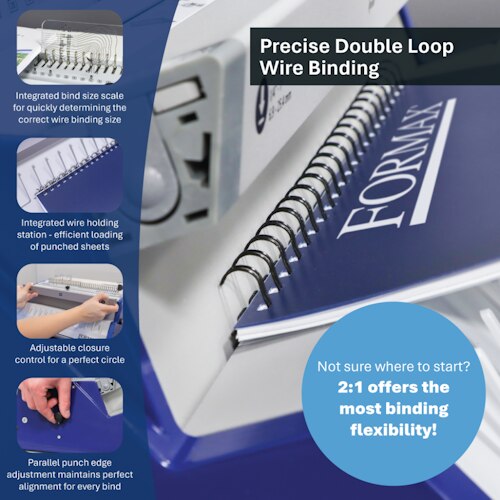

Professional 3:1 Wire Binding
The 3:1 pitch configuration provides a refined finished appearance and accommodates double-loop wire diameters from 1/4" through 5/8". The ReadyWire 3M supports finished documents containing up to 135 sheets.
An integrated wire comb holding device assists with paper positioning prior to binding. Closure control, variable margin depth, and parallel adjustment provide additional control during setup and binding. Completed documents can open a full 360 degrees and lay flat for convenient reading, writing, scanning, and presentations.
