Formax ReadyCombM+ Premium Office Manual Punch & Comb Binding System
Details
Details

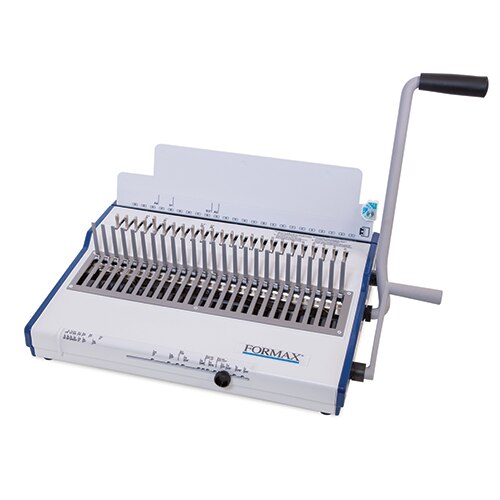

Formax ReadyCombM+ Manual Punch & Comb Binding System
The Formax ReadyCombM+ is a heavy-duty manual punch and comb binding system designed to produce professionally bound documents quickly and easily. Its rugged all-metal construction, lever-activated operation, and compact design provide a durable and straightforward solution for comb binding applications.
A precision vertical punching system uses top loading and gravity to help keep sheets properly positioned for consistent hole placement, even with thicker document sets. Individually disengageable punch pins provide added flexibility for different paper sizes, while specially hardened punch pins are designed for long service life.
The ReadyCombM+ supports plastic comb sizes from 1/4" to 2" and can bind booklets containing up to 480 sheets. Its manual lever-controlled comb opening and closing mechanism provides quick, secure binding, while comb-bound pages can be added or removed without damaging the document or binding.
Key Features
- Manual lever-activated punch and comb binding system
- Heavy-duty all-metal construction
- Compact design
- Binding capacity up to 480 sheets
- Precision vertical punching system
- Top-loading design for consistent hole placement
- Individually disengageable punch pins
- Specially hardened punch pins for longevity
- Adjustable depth gauge
- Variable margin depth
- Closure control adjustment
- Manual lever-controlled binding
- Quick-adjust binding dimensions
- Page size adjustment knob
- Tool-free access to punch pins
- Easy-empty sliding waste tray
- Supports comb sizes from 1/4" to 2"
Specifications
| Model | ReadyCombM+ |
|---|---|
| Punching Speed | Up to 12,000 sheets per hour |
| Punching Width | 0.39" to 13.4" (10 to 340 mm) |
| Unpunched Length | 1.96" to 19.6" (50 to 500 mm) |
| Maximum Punching Thickness | Up to 0.098" (2.5 mm) |
| Punching Operation | Manual, lever operated |
| Punch Hole Dimensions | Rectangular, 8.0 x 3.0 mm |
| Pitch | US |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Binding Thickness | 0.04" to 1.88" (1 to 48 mm) |
| Sheets Per Booklet | Up to 480 sheets |
| Comb Size | 1/4" to 2" (6 to 52 mm) |
| Binding Operation | Manual, lever operated |
| Binding Speed | Up to 200 booklets per hour |
| Dimensions | 20" W x 14" D x 12.5" H (508 x 355 x 317 mm) |
| Weight | 26.5 lb (12 kg) |
Precision Vertical Punching
The ReadyCombM+ uses a precision vertical punching system with top loading to help provide accurate, consistent hole placement. The vertical configuration uses gravity to keep sheets in position, including when working with thicker document sets.

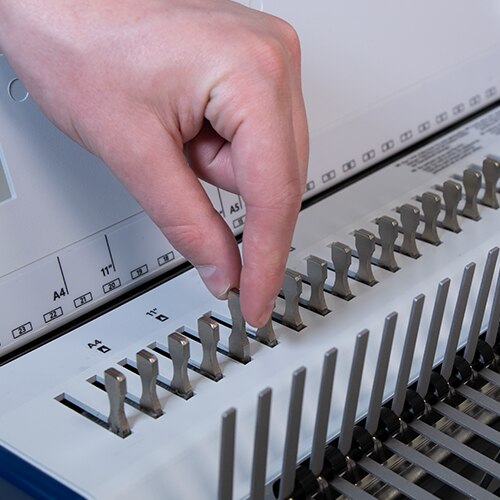

Flexible Punching Setup
Individually disengageable punch pins allow selected pins to be disabled when needed, helping prevent partially punched holes when working with different paper sizes. The punch pins are specially hardened for longevity and can be accessed without tools.

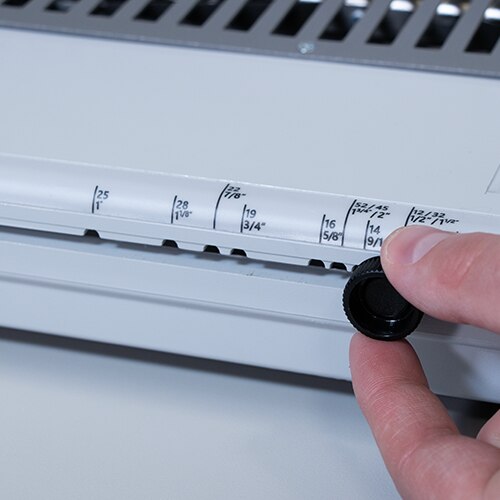

Quick Page Size and Binding Adjustments
A page size adjustment knob allows paper size settings to be changed in less than one second. Quick-adjust binding controls make it easy to change settings between jobs, while the adjustable depth gauge and variable margin depth provide additional setup flexibility.
High-Capacity Comb Binding
The manual lever-controlled binding system opens and closes combs for booklets containing up to 480 sheets. The ReadyCombM+ accommodates comb sizes from 1/4" to 2" and binding thicknesses from 0.04" to 1.88".
Comb binding also allows pages to be added or removed without damaging the document or the binding itself, making the ReadyCombM+ well suited for documents that may need to be updated after binding.
