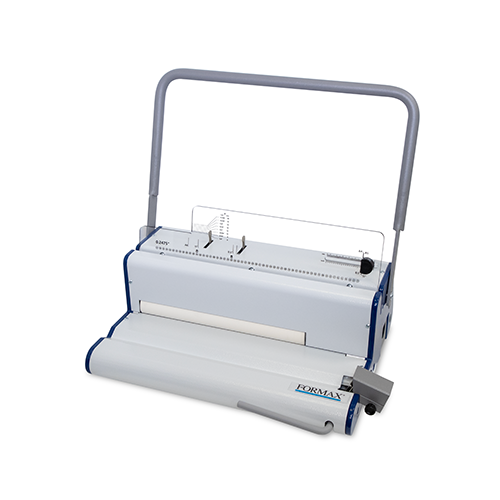

Formax ReadyCoilM Combination Punch & Coil Binder
The Formax ReadyCoilM is a combination punch and coil binding system designed for easy, efficient booklet finishing in offices with low to medium binding volumes. It combines manual lever-activated punching with an integrated electric coil inserter, providing a practical workflow for producing professionally finished spiral-bound documents.
The precision vertical punching system utilizes gravity to help keep sheets securely in place for consistent hole placement, even with thicker document sets. Individually disengageable punch pins provide flexibility for a variety of paper sizes, while specially hardened punch pins are designed for long service life.

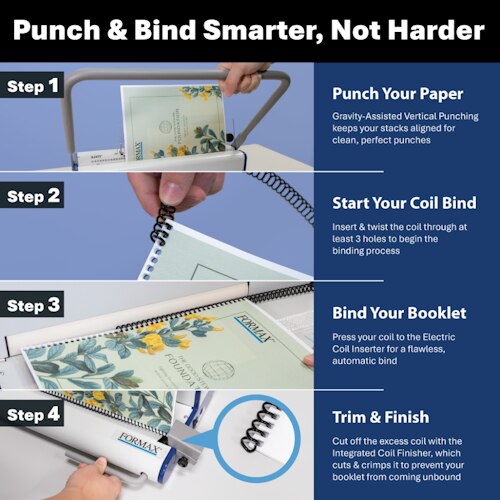

After punching, the integrated electric coil inserter uses a rubber roller to thread plastic spiral coil through the document. An integrated manual cutting and crimping tool finishes the coil with a 45-degree crimp for a clean, professional result. The ReadyCoilM can bind documents containing up to 160 sheets.
Key Features
- Punch and coil binding system
- Manual lever-activated punching
- Integrated electric coil inserter
- Electric roller for quick coil insertion
- Integrated manual coil cutting and crimping tool
- 45-degree coil crimp for a professional finish
- Precision vertical punching system
- Top-loading design for accurate hole placement
- Individually disengageable punch pins
- Specially hardened punch pins for longevity
- Staggered punching pins
- Binds up to 160 sheets
- Measuring guides for document and coil sizing
- Thickness gauge helps determine coil size
- Quick size adjustment for different paper sizes
- Heavy-duty construction
- Compact design
- Easy-empty sliding waste tray
- Tool-free access to punch pins
Specifications
| Model | ReadyCoilM |
|---|---|
| Punching Speed | Up to 8,000 sheets per hour |
| Punching Width | 0.39" to 14" (10 to 360 mm) |
| Unpunched Length | 1.96" to 10.6" (50 to 270 mm) |
| Maximum Punching Thickness | Up to 0.078" (2 mm) |
| Punching Operation | Manual |
| Punch Dies Available | Oval, 5.0 x 4.0 mm |
| Pitch | 0.2475" (6 mm) |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | No |
| Binding Thickness | 0.04" to 0.62" (1 to 16 mm) |
| Binding Width | 0.39" to 14" (10 to 360 mm) |
| Binding Operation | Electric insertion, manual crimp & cut |
| Binding Speed | Up to 50 booklets per hour |
| Dimensions | 18.5" L x 14" D x 18.5" H (470 x 355 x 470 mm) |
| Weight | 42 lb (19 kg) |
| Power Supply | 115V, 60Hz, 90W |
Precision Vertical Punching
The ReadyCoilM uses a precision vertical punching system with top loading for accurate, consistent hole placement. Gravity helps keep sheets securely positioned during punching, including when working with thicker document sets.
Flexible Punching Setup

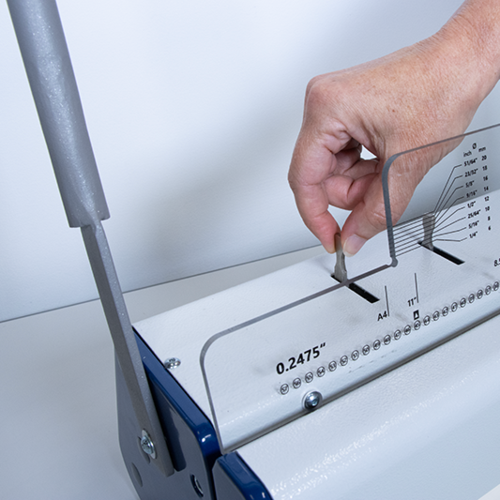

Individually disengageable punch pins allow selected pins to be disabled when needed, helping prevent partially punched holes on different paper sizes. The punch pins are specially hardened for longevity and can be accessed without tools.
Electric Coil Insertion
An integrated electric coil inserter uses a rubber roller to quickly and efficiently thread plastic spiral coil through punched documents. This combines the control of manual punching with the convenience of powered coil insertion.
Integrated Coil Finishing

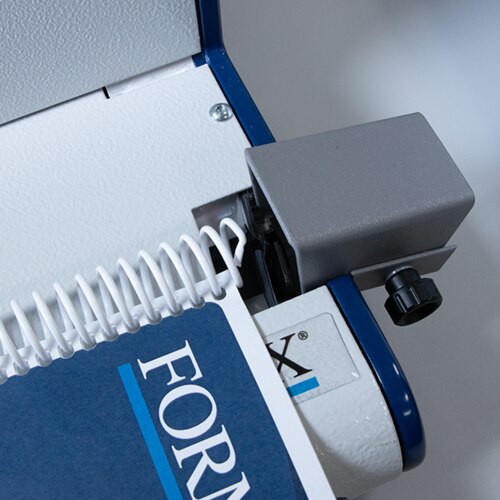

The ReadyCoilM includes a manual cutting and crimping tool for finishing inserted coils. The tool produces a 45-degree coil crimp to help provide a clean, professional finish.
Quick Document and Coil Adjustments

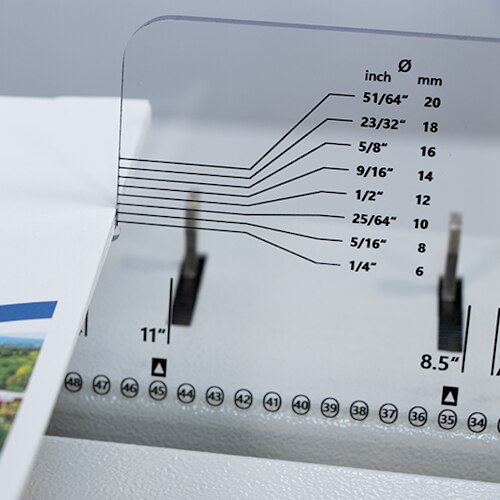

A simple adjustment knob slides to accommodate a variety of paper sizes, while clearly marked measuring guides assist with document and coil setup. An integrated thickness gauge provides a visual reference for determining the appropriate coil size.
