Product Description:
|

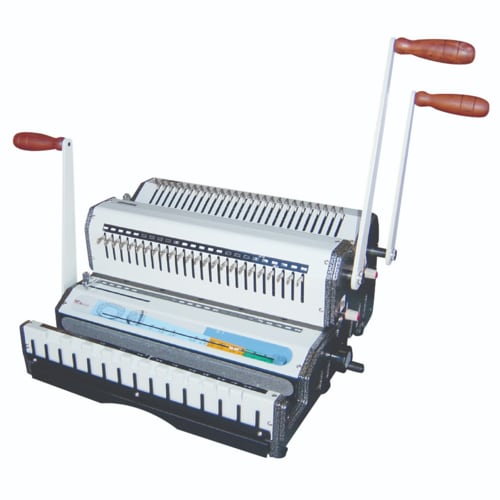

WireMac-Duo is the ALL-IN-ONE Wire-O Punch & Binding machine for all sizes of WireBind.
Based on the best selling WireMac (which has the option of 3:1 and 2:1 Model), the WireMac-Duo has both die sets installed in one single unit, with no need to change dies. This new Wire Mac Duo Binding System is all you need to wire punch and bind from 2 sheets to over 200 sheets!

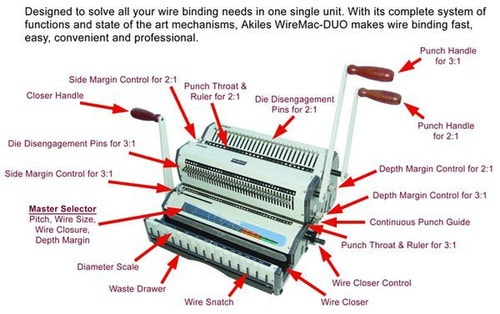

WireMac Duo Features:
- Punches and Closes both 3:1 AND 2:1 Pitch Wires
- Die Disengagement Pins: For a clean and complete punching with different paper sizes.
- Diameter Scale: Measures document's thickness in order to select best wire size option.
- Continuous Punch Guide (3:1 Only) & Open Throats: For punching documents larger than 14".
WireMac-Duo Specifications:
- Disengageable Dies: (40 dies - 3:1) (27 dies - 2:1)
- Binding Capacity: (3:1 - 3/16" - 9/16") (2:1 - 5/8 - 1-1/4")
- Punching Length: 14" with open throats for longer documents.
- Punching Capacity: 20 sheets of 20 lbs bond paper
- Depth Margin Controls: Provides the correct punching margin depth needed for all wire-O sizes.
- Side Margin Controls: Provides a well-centered punch for all document sizes.
- Master Selector: Determines the correct: Wire Diameter, Closing Position, Depth Margin, Wire Pitch.
- Wire Closer Control: Adjusts the wire closer to close wires from 3/16" to 1-1/4"
- Wire Snatch: Holds wire in place for easier inserting of sheets.
- Weight & Cubit Feet 53 Lbs & 2.22 CbFt
- Warranty: One Year
|
 User Manual - Akiles Wire Mac Duo 3-1 & 2-1, Paper Punch & Wire-O Book Binder
|
|
|
|
|
