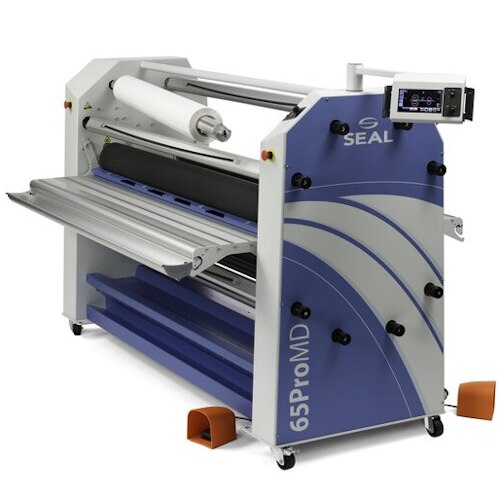

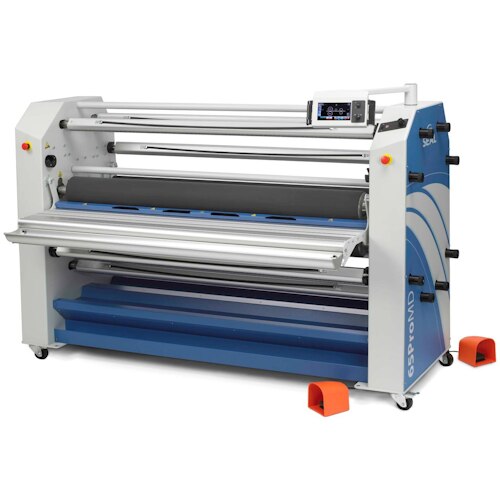

SEAL 65 Pro MD Wide Format Laminator with Slitter Assembly - 65" Working Width
The SEAL 65 Pro MD is a high-production wide format laminator designed for professional hot and cold laminating, mounting, encapsulating and finishing applications. With a maximum 65" working width and operating speeds up to 15 feet per minute, it is built for demanding print and graphics environments where productivity and consistent results are essential.
Please Note: Installation requires appropriate electrical service and a compressed-air supply (listed in Specifications table further below). Verify site requirements before installation. Manufacturer specifications are subject to change without notice.

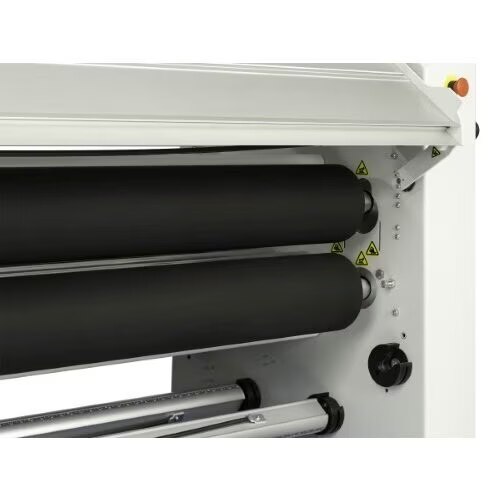

Dual heated rollers support both thermal and pressure-sensitive applications, while precision pneumatic roller control helps deliver smooth, wrinkle-free output. The Easy Operator Interface (EOI) provides touchscreen control of key operating functions, including temperature, speed, cooling and nip height.
This configuration, SKU 64726, includes a factory-installed slitter assembly with two cutters and slitters for streamlined finishing.
Key Features
- 65" maximum working width for wide format graphics and media
- Supports both hot and cold lamination applications
- Maximum operating speed of 15 ft/min
- Dual top and bottom heated rollers with a maximum temperature of 275°F
- Handles substrates up to 2" thick at the nip
- Precision pneumatic roller system for consistent pressure and smooth results
- Bi-directional operation for greater production flexibility

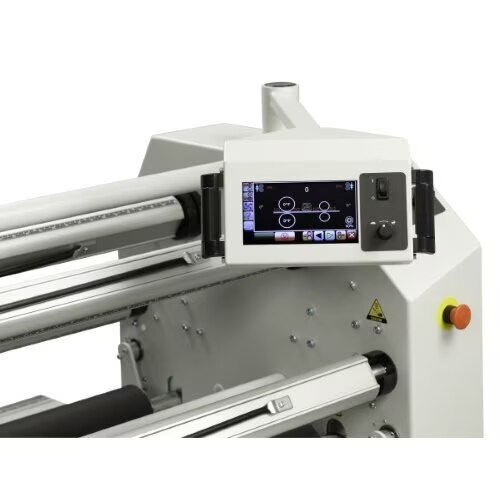

- Easy Operator Interface (EOI) touchscreen controls temperature, speed, cooling and nip height
- Four auto-grip swing-up supply shafts simplify loading films and adhesives
- Flip-up infeed table provides easier machine webbing and setup
- Foot switch allows hands-free machine operation
- Self-checking optical safety devices help protect the operator
- Removable front and rear image roll trough supports convenient feeding of rolled graphics
- Factory-installed slitter assembly includes two cutters and slitters
- TUV SUD certified for the United States and Canada
Applications
- Hot and cold lamination
- Wide format graphic finishing
- Panel mounting
- Encapsulation
- Decaling
- Single- and double-sided lamination
- Roll-to-roll applications
Specifications
| Specification | Details |
|---|---|
| Product | SEAL 65 Pro MD Laminator with Slitter Assembly |
| SKU | 64726 |
| Laminator Type | Wide Format |
| Maximum Working Width | 65" (1651 mm) |
| Maximum Speed | 15 ft/min (4.25 m/min) |
| Maximum Substrate Thickness | 2" (50 mm) |
| Maximum Roller Temperature | 275°F (135°C) |
| Roller Heating | Dual, top and bottom |
| Auto-Grip Supply Shafts | 4 |
| Drop-In Shaft Positions | 3 |
| Maximum Supply Roll Diameter | 12" (305 mm) |
| Maximum Take-Up Roll Diameter | 8" (200 mm) |
| Maximum Combi Roll Diameter | 10" (254 mm) |
| Maximum Film Weight | 120 lb (54 kg) |
| Roll Core Inside Diameter | 3" (76.2 mm) |
| Maximum Nip Pressure | 11 lb/in (2 N/mm) |
| Dimensions Without Roll Trough (W x H x D) | 91" x 62" x 51" (2311 x 1575 x 1320 mm) |
| Dimensions With Roll Trough (W x H x D) | 91" x 62" x 55" (2311 x 1575 x 1397 mm) |
| Net Weight | 1850 lb (839 kg) |
| Shipping Weight | 1955 lb (887 kg) |
| US/Canada Electrical Requirements | 208-230V, 50/60Hz, single phase, 50A, NEMA 6-50 plug |
| Compressed Air Requirement | 2 CFM at 100 PSI |
| Noise Level | <70 dB(A) |
| Slitter Assembly | Factory installed; includes 2 cutters and slitters |
| Warranty | 2-year manufacturer warranty; see manufacturer warranty terms for coverage details |
Professional High-Production Finishing
Built for commercial print, sign and graphics production environments, the SEAL 65 Pro MD combines wide format capacity, high operating speed and versatile media handling in one professional finishing system. Its swing-up auto-grip shafts, touchscreen controls, pneumatic roller system and integrated slitting capability are designed to reduce setup time while supporting consistent production-quality output.
