Rhin-O-Tuff Onyx HD7725 & HD7725H Paper Punch Die
Details
Details

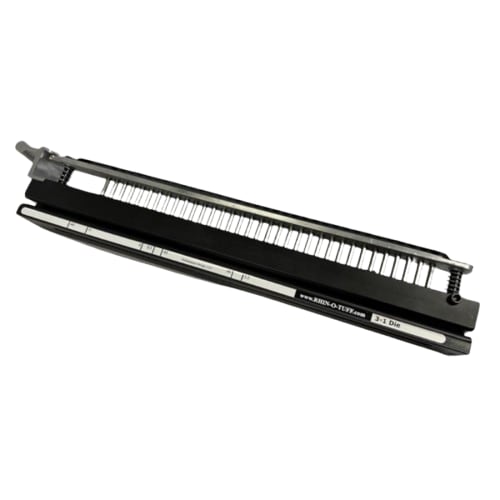

Paper Punch Dies for the Rhin-O-Tuff HD-7725 and HD-7725H
These die sets are designed for use in the HD 7725 and HD 7725H. The new die/tool technology reduces the sound so much that it will fit in to any office, bindery or print-for-pay environment.
Standard HD7725 Dies:
| Bind Style | Punch Pattern | Detailed Style | Die # |
| Plastic Coil | Coil Die (4:1) | 4:1 Round 0.250" 0.172" 0.188" | 079060 |
| Plastic Coil | Coil Die (4:1 - .248 spacing) | 4:1 Round 0.248" 0.188" 0.188" | 079020 |
| Plastic Coil | Coil Die (Oval .2475 spacing) | 4:1 Oval 0.2475" .156" Wide .188" Diameter 0.188" | 079440 |
| Plastic Coil | Coil Die (5:1) | 5:1 Round 0.200" 0.141" 0.160" | 771720 |
| Comb | Comb Die (19 Hole) | Comb 0.5625" .313" Wide .125" Tall .245" to .156" | 079050 |
| Wire | Wire-O Die, 3-1 Round | 3:1 Round 0.333" 0.172" 0.168" | 079080 |
| Wire | Wire-O Die, 2-1 Round | 2:1 Round 0.500" 0.250" 0.250" | 079100 |
| Wire | Wire-O Die, 2-1 Square | 2:1 Square 0.500" 0.250" 0.250" | 079120 |
| Wire | Wire-O Die, 3-1 Square | 3:1 Square 0.333" 0.156" 0.179" | 079070 |
| Ring Binder | 3 Hole Die | 3 Hole 4.250" 0.313" 0.313" | 079420 |
| Velobind | VeloBind Die 11 Hole | Velobind 1" & 4 Prong 0.125" 0.125" | 079030 |
Special HD7725 Dies:
| Bind Style | Order Info | Detailed Style | Die # |
| Plastic Coil | Call to order | 2.5:1 Round 0.400" 0.250" 0.250" | 079500 |
| Plastic Coil | Call to order | 3:1 Round 0.333" 0.172" 0.168" | 079080 |
| Plastic Coil | Call to order | 3:1 Oval 0.333" .217" Wide .256" Diameter 0.256" | 079180 |
| Plastic Coil | Call to order | 4:1 Round 0.2475" 0.172" 0.188" | 079150 |
| Plastic Coil | Call to order | 4:1 Oval 0.250" .138" Wide .173" Diameter 0.188" | 079450 |
| Plastic Coil | Call to order | 5mm Round 0.197" 0.141" 0.160" | 079110 |
| Plastic Coil | Call to order | 6mm Round 0.2362" 0.172" 0.188" | 079090 |
| Plastic Coil | Call to order | 6mm Oval 0.2362" .138" Wide .173" Diameter 0.188" | 079460 |
| Wire | Call to order | 3:1 Round (with Thumbcut) 0.333" 0.172" 0.168" | 000908T |
| Wire | Call to order | 2:1 Rectangle 0.500" .250" Wide .125" Tall 0.188" | 079040 |
| Wire | Call to order | 3:1 Square (with Thumbcut) 0.333" 0.156" 0.179" | 000907T |
| Wire | Call to order | 3:1 Square (Oversized) 0.333" 0.1875" 0.179" | 079480 |
| Ring Binder | Call to order | 3-5-7 Hole 1" - 1" - 2.25" - 2.25" - 1" - 1" 0.313" 0.375" | 000943 |
| Disc-Bind | Call to order | Disc-Binding Die .9842" .256" .255" | 110799 |
