MBM VRCut Ready Triumph 5560LT 21-5/8" Programmable Hydraulic Paper Cutter Package - CU0497VP



VRCut Ready TRIUMPH™ 5560 LT Automatic Programmable Cutter

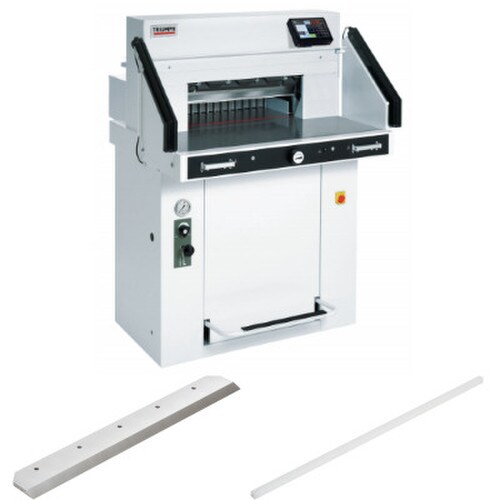

Comes with Full Package - Cutter, Side Tables, Knife, Sticks

Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad, and IR safety light beams on front table.

Comprehensive SCS™ safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; lockable main switch; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

Hydraulic blade and clamp drive. Foot pedal for pre-clamping. Electric back gauge drive with touchpad for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper. Self-diagnostic system with error indication on display. Electronic back gauge control with variable speed control for manual back gauge setting. Clamp pressure is fully adjustable between 1,900 and 3,800 psi. False clamp plate. Bright, LED optical cutting line. Stainless steel work surface. High quality, German HSS blade. Precision swing cut blade movement. Aluminum blade carrier and clamp bar. Adjustable blade guides. All-metal construction. Mounted on casters. Includes easy-access tool holder and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.

TRIUMPH 5560LT Package Features:

  • Cutting Width: 21-5/8"
  • Cutting Height: 3-3/4 (3-5/8" with false clamp)
  • Narrow Cut: 1-1/4" (2-3/8" with false clamp)
  • Length behind blade: 22-7/16"


  • Dimensions (D x W x H): 55" x 64" x 54"
  • 5560 Shipping Weight: 1052 lbs
