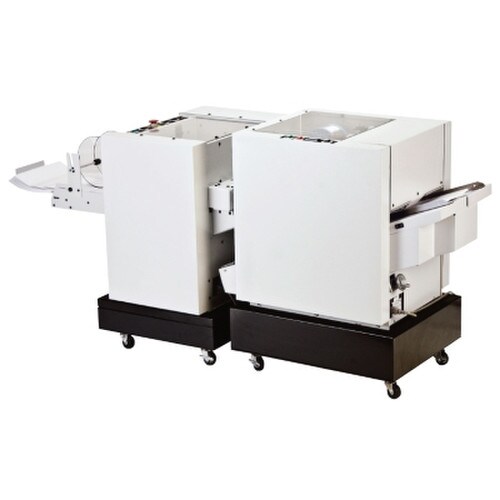

MBM SF2 Wire StitchFold Bookletmaker (w/Base, Backjog, and Interface) - BO0854

$20,199.00
SKU: MBM-SF2-Bookletmaker

Details

The MBM SF2 is a wire-fed stitching system designed to fold and stitch booklets up to 100 pages easily and efficiently. By using wire, you'll save on operating costs compared to a booklet maker (aka bookletmaker) that uses pre-formed staples. The SF2 is able to jog, stitch, and fold up to 65,000 booklets without changing wire spools, making for low maintenance.

The SF-2 is made to run online with a wide variety of collators (interface is included for easy setup) including the MBM FC 10. Featuring easy to use push button controls, operation is made simple and there is a 6 digit counter. The legs adjustment allows the length to be custom fit to the size of book being run. Some of the other great features the SF2 has are:

  • Heavy duty clutch & bearings
  • Moveable magnetic stitching heads
  • Single step threading for quick, simple setup
  • Knife fold with dual folding rollers for crisp and consistent folds
  • Powered exit conveyor
  • Transparent safety access covers (won't operate with the covers in the open positition for extra safety)
  • Back jog
  • Stand with casters
  • Optional activated clinch and online corner/side stich gate

Specifications:

Speed:2,300 sets/hr. (may vary due to paper or power supply)
Sheet Capacity25 (may vary due to paper or power supply)
Paper Size (Bookletmaker):4 3/4" x 8 1/2" up to 12 3/4" x 18 1/2"
Paper Size (Trimmer):4 3/4" x 8 3/4" up to 12 11/16" x 18 1/4"
Machine Dimensions (DxWxH):21" x 52" x 24 1/2"
Power Supply:115 V, 60 Hz

The SF2 is also known as the SF-2 or SF 2.

Optional Face Trimmer for SF 2 Bookletmaker
Operates on-line with SF 2 booklet maker. Trims booklets up to 100 pages.* Powered exit conveyor. Transparent safety access cover—machine will not operate with cover in open position.
