MBM FC 10 Automatic 10 Bin Friction Collator


Ships via Truck


**Voted Best Collator**

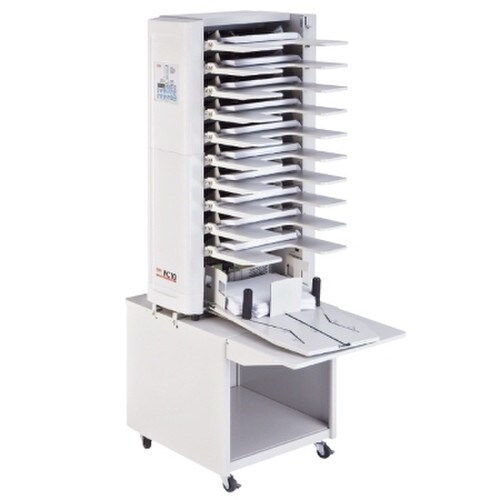

The MBM FC 10 is an automatic 10-bin friction collator that is ideal for copy shops, offices, and print shops.

The FC 10 collates a variety of paper stocks and weights at speeds up to 3,600 sets per hour* 275 sheet bin capacity*

  • Touch-button control panel with LED 4 digit counter simplifies set-up and operation programming modes include preset batch, insertion, and an alternate bin mode for continuous production.
  • Adjustable stacking table for straight or criss-cross stacking self-centering feed guides eliminate the need to reposition on-line bookletmakers for different size stock adjustable feed and separator pressures on each bin.
  • Bin empty sensor
  • Extra large, detachable feed trays
Additional Features Available: Optional base with casters, twin tower transport unit, high capacity stacker, and corner stapler.

Dimensions (D x W x H): 21" x 28" x 41 1/4" (34" W, 63" H with base)
Shipping weight: 231 lbs. (281 with base)

Number of bins10
Bin capacity275 sheets*
Paper size3 3/4" x 5 7/8" to 12 7/8" x 18 1/2"
Paper weight20 to 100 lbs.
Speed3,600 sets/hr.*
Power supply110 V, 60 Hz

This machine is ready to go, easy to use, & gets the job done right. To order the MBM FC 10 by phone, call 1-866-455-9900.
