MBM Kutrimmer-Triumph 1080 Paper Trimmer 31 1/4"
|
| Item #:
MBM-Trim-1080 |
|
|
|
|
|
|
 Free Shipping! |
|
Frequently Bought Together |
Expand - Choose Related Items:
|
|
Product Description:
|

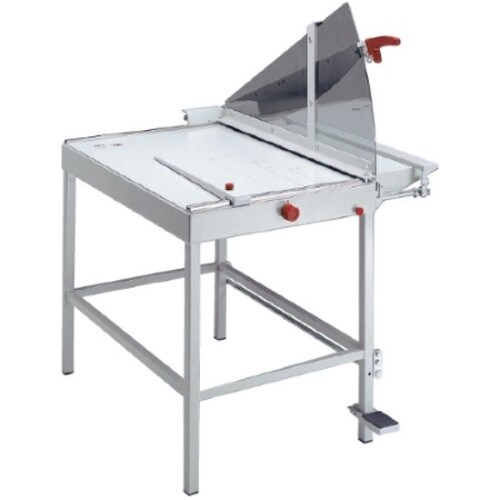

The MBM Kutrimmer-Triumph 1080 Paper Trimmer is a Heavy Duty Trimmer.
Features:
- Solingen steel blade set may be resharpened
- Special wide-angle blade cuts heavy materials such as matteboard, plastic, and metal foil
- Transparent Lexan® safety guard blade lock foot pedal for positive clamping
- Precision side guides scaled in inches and metric system
- Adjustable back gauge
- Front gauge is adjustable using a calibrated rotary knob with fine adjustment scale, lockable in every position
- Narrow-strip cutting device
- Fold-down extension table provides support for large cutting jobs
- Standard paper sizes indicated on table
- Solid cast aluminum blade mounting bracket with double pivot bearings for blade axle
- All-metal construction
Dimensions (D x W x H): 42 1/2" x 26 1/4" x 48" (35" W with fold-away extension table in working position)
Shipping weight: 158 lbs.
| Cutting length |
31 1/2" |
| Sheet capacity |
20* (5/32" cutting height) |
| Table size (D x W) |
31 1/2" x 23 7/8" |
*May vary due to variations in paper
All trimmers feature sturdy, all-metal construction and the finest Solingen steel blades.
Every Triumph trimmer features stationary or movable transparent Lexan safety guards. All models are tested by independent safety labs and comply with all applicable international safety regulations. Triumph trimmers are certified under a quality management system established in all company areas under the DIN EN ISO 9001:2008 standards.
|
