James Burn EasyPunch Automatic Punch

SKU: JB-04JBEZPUNCH

Quantity discounts available:

QuantityPrice

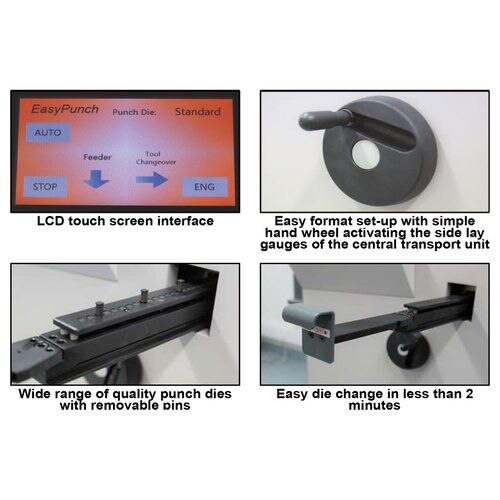

  • LCD touch screen interface.
  • Easy format set-up with simple hand wheel activating the side lay gauges of the central transport unit.

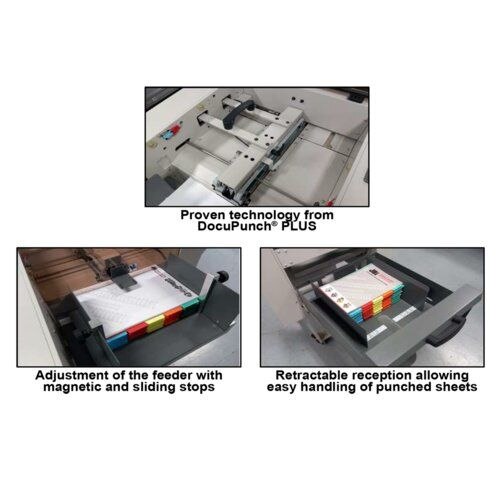

  • Proven technology from DocuPunch® PLUS.
  • Wide range of quality punch dies with removable pins.

Details

Details

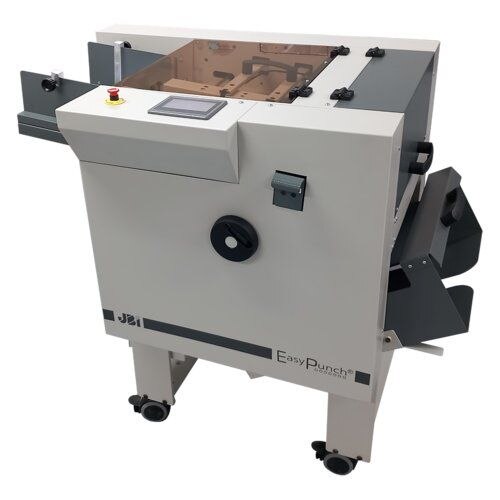

The EasyPunch® Automatic Punch is perfect for copy centers, allowing your staff to focus on other tasks while it automatically punches up to 9,000 sheets per hour. This efficient machine saves you time and money, offering high labor savings and a quick ROI.

It comes with lockable heavy caster wheels and can be set up in minutes anywhere in your shop. Compatible with various punching dies for Wire-O, Coil, Comb, and more.

Features & Benefits:

  • Efficient: Despite its compact size, this machine operates at impressive speeds of up to 9,000 sheets per hour or 50 cycles per minute. Switching out the punching pattern takes less than a minute, ensuring seamless job transitions and enhanced productivity for various punching tasks. It offers both productivity and security for diverse punching requirements.
  • Versatile: The EasyPunch handles a wide range of paper stocks, covers, and tabbed sheets in perfect pre-collated order.
  • Easy-to-use: Simply load the feeder, press the start button, and walk away—the automatic operation makes it a breeze.
  • Wide range of heavy-duty punching dies: From Wire-O® wire and Plastic Coil to Plastic Comb, Velobind®, and 2, 3, or 4-ring binders, this machine supports multiple punching options. Guide posts ensure perfect alignment, quick pin access, and flanged holes for waste clearance and longer die life.
  • Ergonomic design: All operations, including punch die changes, can be easily performed from the front of the machine. It even features integral storage space for one die.
  • Safety: Built-in features prevent paper jams and enhance operation safety.



Specifications:

Item#04JBEZPUNCH
ManufacturerJames Burn

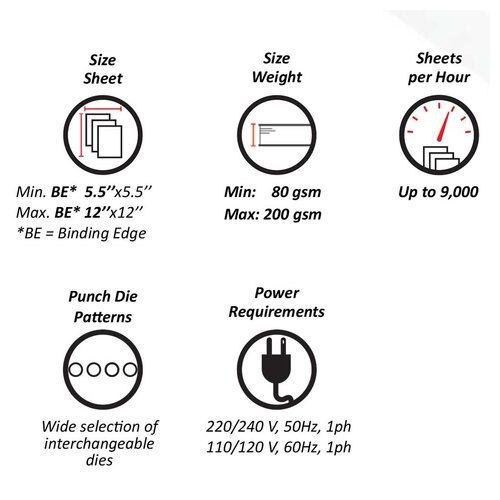

Max Sheet Size (Based on 80gsm)12" (BE) x 12" (BE = Binding Edge)
Min Sheet Size (Based on 80gsm)5.5" (BE) x 5.5" (BE = Binding Edge)
Compatible Supplies and AccessoriesPunching Dies for James Burn EasyPunch
Sheet WeightFrom 80 to 200 gsm
Feeder & Reception Tray Capacity4" (2 reams = 1,000 sheets)
Cycle Speed40 and 50 cycles/minute
Punch SpeedUp to 9,000 sheets/hour (80gsm)
Byte Thickness.01"
ToolingInterchangeable with removable pins
Tool Change Over2 minutes ; integral storage space for 1 die
Control PanelTouch screen
Format Set Up TimeVia touch screen and hand wheel in less than 5 minutes
Power220/240 V (50Hz) 1ph - 110/120 V (60Hz) 1ph
Machine Dimensions (W x D x H)44" x 29" x 41"
Net Weight370 lbs
