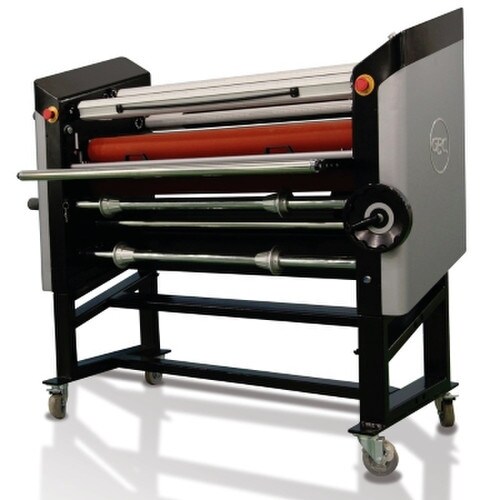

GBC Spire III 44T - 44" Thermal Wide Format Laminator - 1737174
|
| Item #:
GBC-Spire-III-44T |
|
|
|
 Ships via Truck |
|
Frequently Bought Together |
Product Description:
|
The GBC Spire III 44T takes lamination to a new level. With a modern, industrial design and extensive feature sets, the Spire III 44T provides cost effective, high quality lamination unsurpassed by others in its class. All steel construction promises long-term durability and reliability while the built-in sophistication ensures a professionally finished job – thermal or cold – every time.
Running at a maximum speed of 16 feet per minute with 4" heat rollers, this Spire III laminator is fast and retains heat better for longer runs. Even beginners will find the Spire III easy-to-use, with a user-friendly control panel and auto grip and easy-load supply shafts for no-hassle film loading. Designed with an eye for increasing versatility, a 2" mounting gap allows for mounting of thicker substrates while optional unwinds and rewinds and roll-to-roll capabilities can be easily added later.
Features:
- Simple, intuitive control panel with LED pressure readout
- Deep feed table makes feeding larger sheets effortless
- Hand crank for opening and closing rollers provides an infinite choice of settings
- 20 feet per minute laminating capability
- Foot pedal for hands-free operation
- Up to 44" wide laminating and mounting capabilities
- Independently controlled upper and lower heat rollers allow for running multiple thermal film gauges and PSA films concurrently
| Item Number |
1737174 |
| Maximum Laminating Width |
44" |
| Core Diameter |
3" |
| Unwinds/Rewinds |
Top Front - 1 Unwind, 1 Rewind
Bottom Front - 1 Unwind
Top Rear - Optional Rewind Bottom
Rear - Optional Rewind
|
| Maximum Speed |
17ft/min |
| Maximum Temperature |
300° F |
| Heat Roller Diameter |
4" |
| Independent Heater Controls |
Yes |
| Maximum Mounting Gap |
2" |
| Type of Roller Pressure Adjust. |
Infinite crank handle with scale indicator for gap and LED pressure readout |
| Protective Shield (heat rollers) |
Photo eye |
| Roll-to-Roll Capabilities |
Optional |
| Foot Switch |
Yes |
| Type of Supply Shafts |
2 Drop-In AUTOGRIP
1 Drop-In Multicore Media
Additional AUTOGRIP and Multicore Media Available |
| Maximum Film Outside Diameter |
10" |
| Digital Display with mechanical push-button Control Panel |
Yes |
| Front Feed Table |
Swing-up front table |
| Drive System |
Sprocket & chain
User adjustable pull roll clutch |
| Cooling Fans |
Yes |
| Idler Chill Roller Bar |
Yes |
| Amperage/Voltage |
220 VAC, 17 Amps |
Order yours today, or call us at 1-866-455-9900 to order the Spire III 44T by phone.
|
 User Manual - GBC Spire III 44T - 44" Thermal Wide Format Laminator - 1737174
|
|
|
|
|
