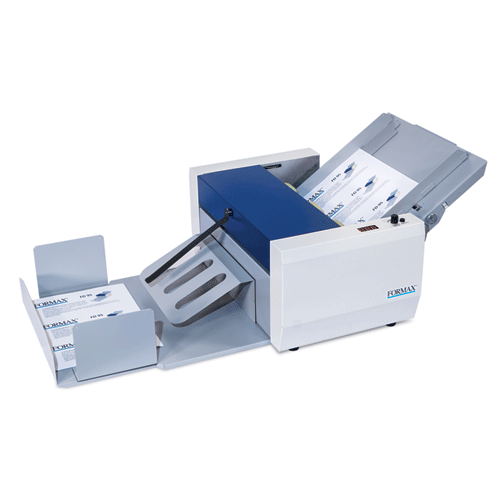

Formax FD 95 Rotary Perforator/Creaser

FD 95

ROTARY PERFORATOR/CREASER

• Processes up to 7,080 sheets per hour
• Up to 5 parallel perforations and/or creases in one pass
• Accommodates sheets up to 13.8" x 19"
• Variable speed control
• Resettable LED counter

The FD 95 Rotary Perforator/Creaser is specially designed to finish printed sheets, up to 13.8" x 19". Its three-tire friction feeding system reliably feeds up to 7,080 sheets per hour, and can create up to 5 parallel perforations and/or creases in a single pass. With variable speed control for different paper weights up to 180gsm, the FD 95 perforates and/or creases automatically, stacking the finished sheets neatly on the telescoping outfeed table. Standard set-up includes two perforating wheels, one creasing wheel and paper guides. Options include additional perforating sets, microperforating sets (17 tpi), creasing sets and guide strips to accommodate 55 - 60gsm paper. It’s ideal for small print shops, on-demand, and in-plant finishing applications including postcards, invitations, tear-offs, brochures, billing statements, and more.

DESIGN

• Automatic Feeding: Telescoping infeed tray with adjustable side guides and three-tire feed system
• Telescoping Outfeed: Outfeed extends to accommodate sheets up to 13.8" x 19"
• Variable Speed Control: Adjustable to process a variety of different paper weights
• Resettable LED Counter: Three-digit counter keeps an accurate tally of processed sheets
• Single-Pass Processing: Perforates and creases in a single pass up to 5 per sheet

STANDARD FEATURES

• Simple set-up & operation
• Processes up to 7,080 sheets per hour
• Up to 5 parallel perforations and/or creases
• Interchangeable perforating/creasing wheel
• Variable speed control
• 3-digit resettable LED counter
• Reliable three-tire friction feeding
• Telescoping infeed and outfeed tables
• Fine-tuning knobs
• Accommodates paper up to 13.8" x 19"
• Processes paper weight from 55 - 180gsm

OPTIONS

• FD 90-05 Standard perforating set: Upper and lower perforating wheels, 2 guide strips
• FD 90-10 Micro-Perforating set: Upper and lower perforating wheels, 2 guide strips
• FD 90-20 Guide strips for 55-60gsm paper, set of 2
• FD 90-30 Creasing wheels, set of 2

SPECIFICATIONS
