Formax FD 8906CC Industrial Conveyor Shredder
Details
Details
FD 8906CC
INDUSTRIAL CONVEYOR SHREDDER
- LED Control Panel: Load indicator to maximize efficiency and minimize jams
- Chain Driven Metal Gearing System: Heavy duty steel gears for high performance
- Conveyor-Feed Shredding: Shreds entire files, stacks of forms, cardboard, and CD’s
- Front Waste Bin Access: Allows shredder to be placed against wall to maximize space
FEATURES
- High capacity conveyor fed
- LED Control Panel
- Shreds entire files, stacks of forms, cardboard, CDs
- Front waste bin access
- Automatic internal blade oiling system
Fully-automated commercial-grade power for high volume shredding...
The FD 8906CC Industrial Conveyor Shredder is designed to shred stacks of computer forms, cardboard, CDs, and entire files up to 650 sheets, at speeds of up to 35 fpm. Standard features include an LED Control Panel with load indicator, heat-treated solid-steel cutting blades, a powerful AC geared-motor, Auto Start/ Stop, Auto Reverse, and a variety of safety features. Shredding blades can also be customized to meet your specific needs. The front-access metal waste bin allows the shredder to be placed against a wall to save valuable space. The standard EvenFlow™ automatic oiling system lubricates the cutting blades, keeping the FD 8906CC in peak operating condition.
DESIGN

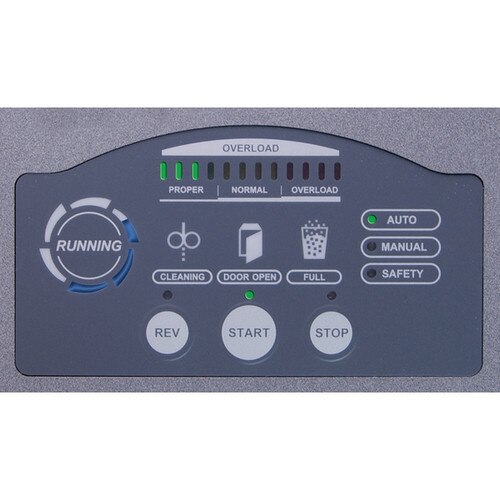

- User-Friendly Control Panel: Auto and Manual mode, Bin Full Indicator, Load Indicator
- Commercial Grade: Heat-treated steel cutting blades, all metal gears, and an AC geared motor
- Designed for Safety: Large stop bar, safety key lock, door open sensor, overload protection
- Internal Blade Oiling System: EvenFlowTM Automatic Oiling System lubricates blades for peak performance
- Front Access Waste Bin: Shredder can be placed against a wall to maximize space
OPERATING FEATURES
- Belt-feed industrial shredding system
- LED control panel
- Front waste bin access
- Auto start/stop
- EvenFlow™ automatic oiling system
- Heat-treated solid-steel blades
- Chain-driven AC geared motor
- Auto reverse and cleaning
- Customizable shredding blades
- Waste bin full sensor
- Large safety bar and safety key lock
- Thermal overload protection
- Safety circuit breakers
- Rugged steel waste bin with casters
SUPPLIES
- Cutting Head Lubricating Oil: #8000-20, four 1-gallon bottles
- Shredder Bags: Reusable heavy-duty nylon bags
WARRANTY
- Cutting head: Lifetime limited warranty
- All other parts: 1 year warranty
OPTIONS
- Output Conveyor Belt System: Rear conveyor belt transports shredded material to external waste bin
- Additional Steel Waste Bin
SPECIFICATIONS
| Cutting Style | Cross Cut* |
|---|---|
| Shred Size | 5/16" x 1-1/2" - 3" (8 x 38 - 76mm) |
| Sheet Capacity (70gsm) | Up to 650 sheets** |
| Speed | Up to 35 fpm (10m) |
| Feed Opening | 21" (53cm) |
| Dimensions | 47" W x 81" L x 63" H |
| Dimensions | 47" W x 125.5" L x 63"H |
| w/Optional Conveyor | (119 x 319 x 160cm) |
| Bin Capacity | 102 gal (386l) |
| Weight | 1,984 lbs (900kg) |
| Security Level | P-3 |
| Delivery Requirements | Customer-supplied fork lift is required for installation |
| Power Supply | 3-phase 220V, 60Hz, 50A dedicated line required NEMA CS8366 plug included CS8369 receptacle required |
* Custom blades available for special purpose, size, and applications
** Sheet capacity may vary due to variations in paper and power supply
