FD 8906B
INDUSTRIAL CONVEYOR SHREDDER & BALER
- LED Control Panel: Load indicator to maximize efficiency and minimize jams
- Chain Driven Metal Gearing System: Heavy duty steel gears for high performance
- Conveyor-Feed System: Shreds entire files, stacks of forms, cardboard, and CD’s
- High Capacity Output Baler: Improve throughput by minimizing frequency of unloads.
FEATURES
- High capacity conveyor fed
- LED Control Panel
- Shreds entire files, stacks of forms, cardboard, CDs
- Front waste bin access
- Automatic internal blade oiling system
Fully-automated commercial-grade power for high volume shredding...

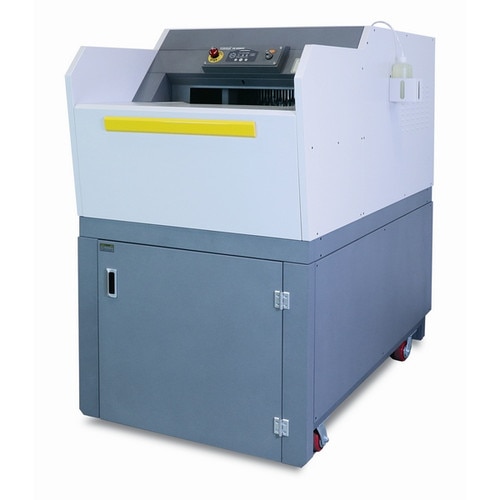

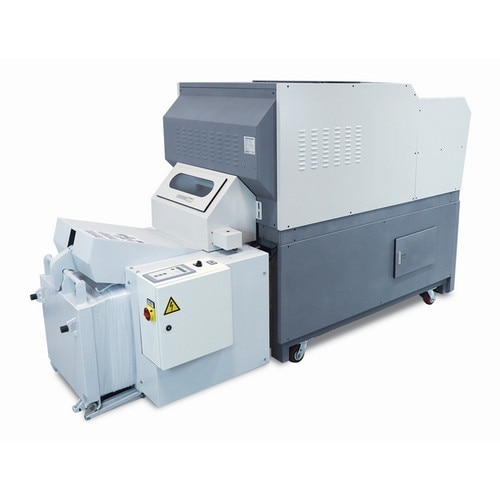

The FD 8906B Industrial Conveyor Shredder is a high-capacity unit with an output baler that continually compacts shredded material into a bale for easy disposal. The FD 8906B can shred stacks of computer forms, cardboard, CDs, and entire files up to 650 sheets, at speeds of up to 35 fpm. Standard features include an LED Control Panel with load indicator, Auto Start/ Stop, heat-treated solid-steel cutting blades, a powerful AC geared-motor, and a variety of safety features. Shredding blades can also be customized to meet your specific needs. The standard EvenFlow™ automatic oiling system lubricates the cutting blades, keeping the FD 8906B in peak operating condition.
DESIGN

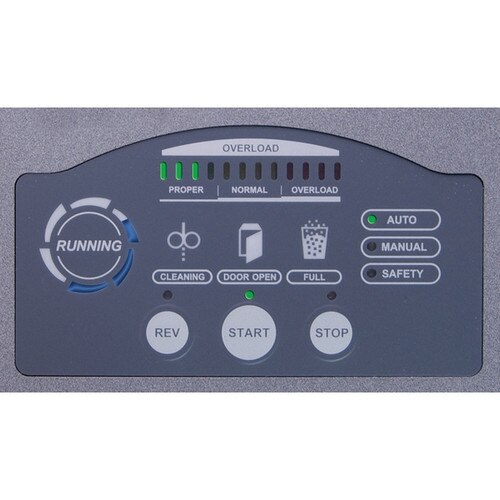

- User-Friendly Control Panel: Auto and Manual mode, Bin Full Indicator, Load Indicator
- Commercial Grade: Heat-treated steel cutting blades, all metal gears, and an AC geared motor
- Designed for Safety: Large stop bar, safety key lock, door open sensor, overload protection

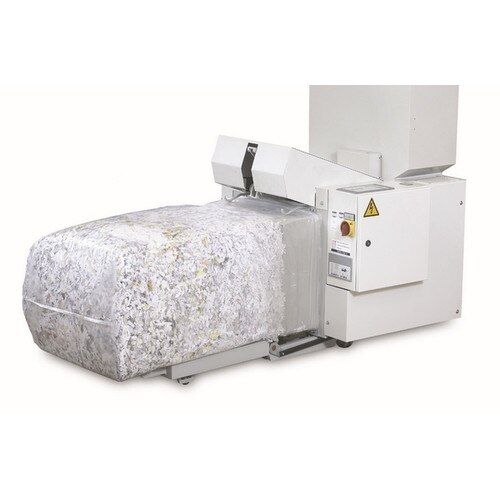

- High-Capacity Baler: Continually compacts material into a bale to minimize unloading

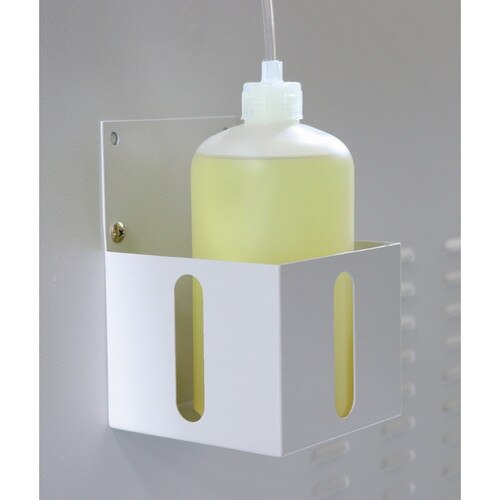

- Internal Blade Oiling System: EvenFlowTM Automatic Oiling System lubricates blades for peak performance
OPERATING FEATURES
- Belt-feed industrial shredding system
- LED control panel
- High-capacity output baler
- Auto start/stop
- EvenFlow™ automatic oiling system
- Heat-treated solid-steel cutters
- Chain-driven AC geared motor
- Auto reverse and cleaning
- Customizable shredding blades
- Baler full sensor
- Large safety bar and safety key lock
- Thermal overload protection
- Safety circuit breakers
SUPPLIES
- Cutting Head Lubricating Oil: #8000-20, four 1-gallon bottles
- Shredder Bags: Reusable heavy-duty nylon bags
WARRANTY
- Cutting head: Lifetime limited warranty
- All other parts: 1 year warranty
SPECIFICATIONS
| Cutting Style | Cross Cut* |
|---|---|
| Shred Size | 5/16" x 1-1/2" - 3" (8 x 38 - 76mm) |
| Sheet Capacity (70gsm) | Up to 650 sheets** |
| Speed | Up to 35 fpm (10m) |
| Feed Opening | 21" (53cm) |
| Dimensions | 47" W x 129" L x 63" H (119 x 327 x 160cm) |
| Bale Capacity | 154 gal. compressed bale size |
| Weight | 3,495 lbs (1585kg) |
| Baler Pressing Power | 80.8 kN |
| Bale Size | 31" W x 22" L x 19"H (78 x 56 x 48cm) |
| Bale Weight | 110-154 lbs. (material dependent) |
| Delivery Requirements | Customer-supplied fork lift is required for installation |
| Security Level | P-3 |
| Power Supply | 3-phase 220V, 60Hz, 50A dedicated line required NEMA CS8366 plug included CS8369 receptacle required |
* Custom blades available for special purpose, size, and applications
** Sheet capacity may vary due to variations in paper and power supply
