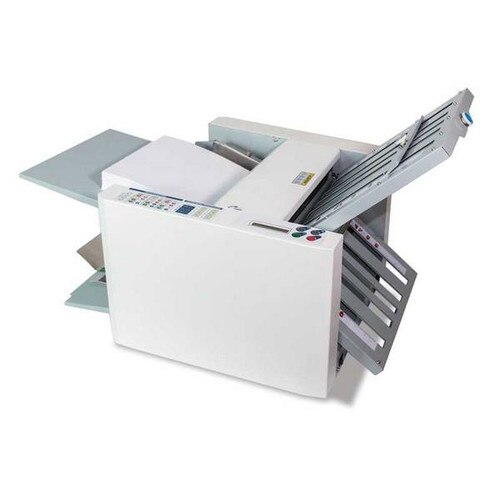

Formax FD 324 Document Folder

FD 324 Document Folder

DOCUMENT FOLDING

• Processes up to 8,600 sheets per hour
• LCD control panel with 3-digit counter
• Pre-marked for 4 popular folds

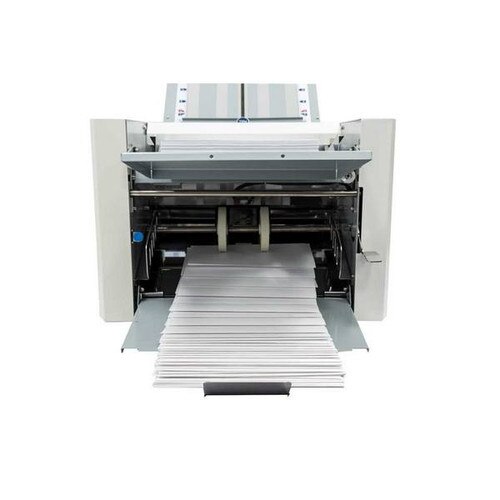

• Output conveyor with adjustable stacker wheels
• Rugged, compact, all-metal construction

The FD 324 Document Folder processes up to 8,600 sheets per hour and can accommodate paper sizes up to 12" x 18".

Its removable fold plates are clearly marked with four common fold settings for Letter, Zig-Zag, Double Parallel, and Half Fold. The LCD Control Panel features AutoBatch, which allows users to process a specific number of sheets with a pause between sets, ideal for groups of flyers or mailings. In addition, the output conveyor includes easily adjustable stacker wheels for neat, stacking of folded pieces. The three-tire friction feed system accurately pulls paper into the folder, while the skew knob allows for moving the feed table left or right, to adjust for minor misalignments.

DESIGN

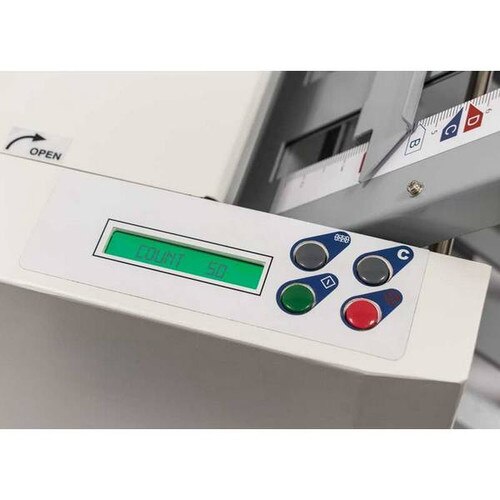

• LCD Control Panel: Features a 3-digit resettable counter with AutoBatch
• Adjustable Stacker Wheels: Neatly stack different paper sizes and fold types

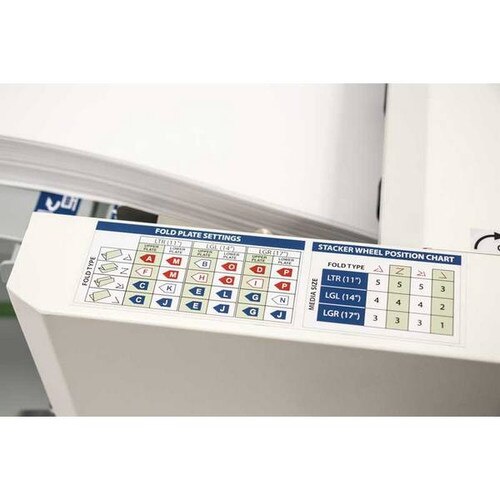

• Intuitive Graphic Fold Guide: Icons on the chart match those on the fold plates for easy setup
• Skew Adjustment: Skew knobs move feed table left or right to adjust for minor misalignments

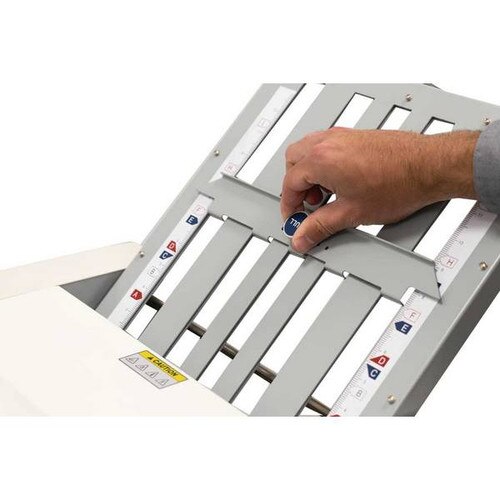

• Pre-Marked Fold Stops: Fold plates are clearly marked for 4 popular fold types in 11", 14", and 17"

STANDARD FEATURES

• Quick, easy set-up
• Folds up to 8,600 pieces per hour
• LCD control panel with resettable counter
• Output conveyor with adjustable stacker wheels
• Three-tire drop-in feed system
• Handles paper sizes up to 12" x 18"
• Intuitive graphic fold guide
• Pre-marked with 4 standard folds
• Quick-release fold stops
• AutoBatch
• Fine-tuning knobs
• Rugged all-metal construction
• Skew adjustment

SPECIFICATIONS
