Formax FD 282 Tabber Double-Head Edge Tabbing System

FD 282 Tabber

DOUBLE-HEAD EDGE TABBING SYSTEM

MODELS

• FD 282HF- FD 282 Tabber plus High-Volume Heavy-Duty Friction Feeder
• FD 282SF- FD 282 Tabber plus Medium Volume Synchronized Feeder

DETAILS

• Single tabs up to 25,000 pieces per hour
• Applies up to 3 tabs in a single pass
• Handles media up to 1/4" thick
• Digital LCD display
• Program up to 4 jobs into memory

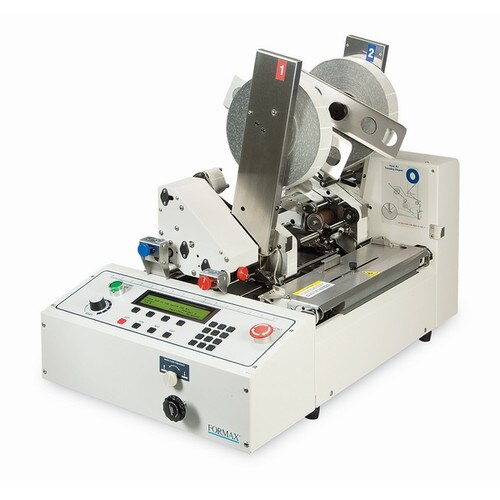

The FD 282 Double-Head Edge Tabbing System features revolutionary advances in tabber design. It can apply tabs on opposite sides of the mail piece at the same time, or on top and side in a single pass. The key is the FD 282’s combination of tabbing heads: the fixed head applies tabs along an open edge, while the repositionable head can switch from side tabbing to front (leading-edge) tabbing. The flexible head can also affix flat tabs, small labels or up to 3 USPS roll stamps in one pass. The central control panel with LCD display can store up to 4 jobs into memory. The FD 282 processes up to 25,000 pieces per hour (single), 15,000/hour (double) or 10,000/hour (triple), in sizes up to 11" x 15", up to 1/4" thick.

DESIGN

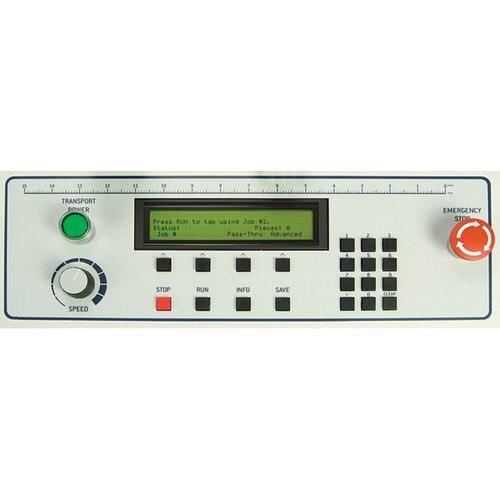

• LCD Display: Allows for easy set up and operation with up to 4 programmable jobs
• Edge tabbing: Applies tabes on both sides of a mail piece simultaneously
• Optional Heavy Duty Friction Feeder: Variable speed, jog, feeder interface, and holds a stack up to 13" high

STANDARD FEATURES

• Applies up to 25,000 single tabs per hour
• Works in-line or as a stand alone unit
• Applies up to three tabs in one pass
• User friendly controls
• LCD display
• Program & store up to 4 custom jobs
• Capable of applying up to 3 USPS roll stamps
• Processes media up to 15" long
• Adjustable tab density for accurate placement
• Resettable lifetime and job counter
• Handles media up to 1/4" thick
• Tab placement accuracy +/- 1/16"
• Made in USA

OPTIONS

• FD 282-10 Heavy Duty Friction Feeder
• FD 282-05 Medium Duty Synchronized Feeder
• FD 282-30 Drop-Stacking Conveyor
