AutoSeal® FD 2006IL System
PRINT, FOLD & SEAL IN-LINE
- Print, fold and seal in one seamless process
- Color touchscreen control panel
- Fully enclosed paper path for document security
- Works with model-specific desktop laser printers
- Includes alignment base for accurate feeding

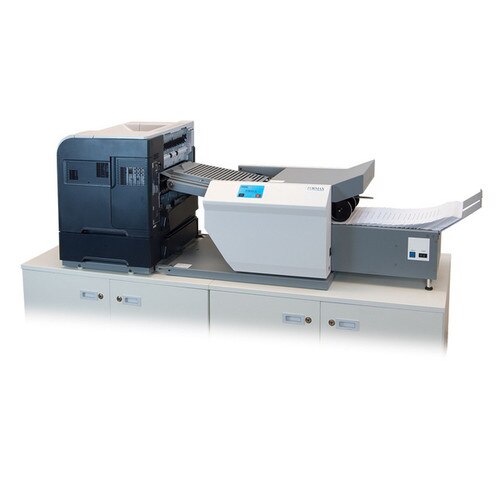

The FD 2006IL AutoSeal® System allows operators to print, fold and seal pressure-sensitive one-piece mailers in one step, reducing processing time and increasing document security. The IL System works in-line with model-specific MICR and non-MICR desktop laser printers. Its fully-enclosed paper path is designed to conceal confidential documents, including PIN notices, checks, school grade reports and health care information. Standard features include a color touchscreen control panel, and clearly marked fold plates, and an alignment base which joins the FD 2006IL with the laser printer for accurate feeding. Built in the USA with proven Formax technology, it’s ideal for processing sensitive and confidential documents.
DESIGN
- Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use

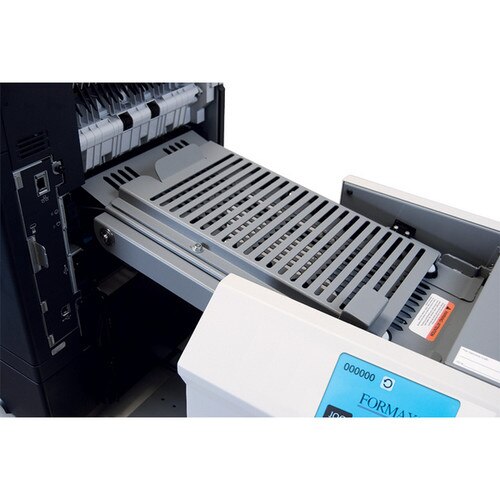

- Fully Enclosed Paper Path: Provides document security from printer to pressure sealer

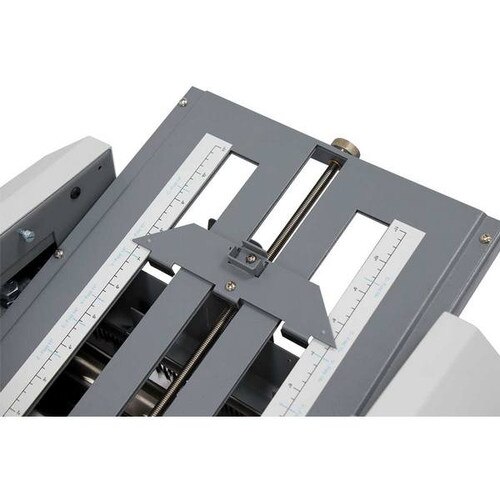

- Easy to Adjust Fold Plates: Clearly marked and easy to adjust for popular and custom folds
- Adjustable Catch Tray: Accommodates any fold type, stacks forms neatly and sequentially
- Insulated Fold Plates: Top, side covers, and fold plates are insulated to reduce noise
STANDARD FEATURES
- Print, fold, and seal in a single pass
- Color touchscreen control panel
- Enclosed paper path for document security
- Processes forms up to 14" in length
- Designed to work with a variety of printers
- Easy to install, no software required
- Alignment base is included
- Z & half folds (all applications)
- C fold (bottom check position only)
- Detects double feeding and any faults
- Designed for in-line use only
- Easy access to the paper path
OPTIONS
- P2006IL: Cost-saving package that includes the FD 2006IL system, 18" conveyor and 2 cabinets
- 18" Conveyor with photo eye
- Reverse Stacking Conveyor: Allows for A-to-Z input and A-to-Z output
- Locking Cabinets with casters (2 required for System)
SPECIFICATIONS
| Printer Compatibility | Contact us for a full list of compatible printers |
|---|---|
| Fold Types | Z & Half (all applications) C (bottom check position only) |
| Speed | Printer dependent |
| Paper Size | Up to 8.5" W x 14" L (216 x 356mm) |
| Monthly Duty Cycle | Up to 100,000/month |
| Power | FD Model: 120 Volts AC, 50/60Hz FE Model: 220 Volts AC, 50/60Hz |
| Dimensions (closed)** w/18" Conveyor (closed) | 19" W x 46" L x 23" H (483 x 1168 x 584mm) 19" W x 65" L x 23" H (483 x 1651 x 584mm) |
| Tabletop Area Required w/18" Conveyor | 20" W x 43" L (508 x 1092mm) 20" W x 69" L (508 x 1753mm) |
| Dimensions w/Cabinets & 18" Conveyor | 20" W x 74" L (508 x 1880mm) |
**Dimensions include IL Pressure Sealer and IL Alignment Base (both included) and laser printer (not included in system)
