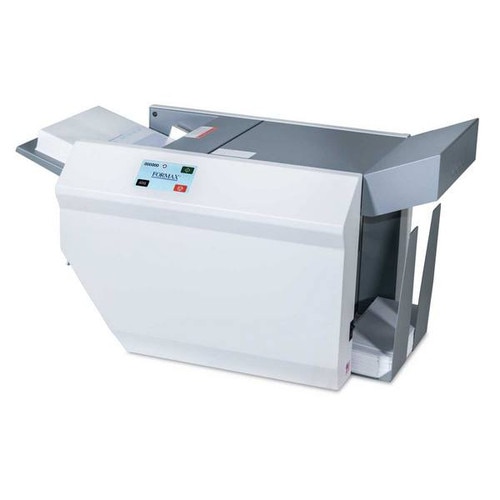

Formax AutoSeal FD 2006 Mid-Volume Pressure Sealer
Details
Details
AutoSeal® FD 2006
MID-VOLUME PRESSURE SEALER
- Color touchscreen control panel
- Drop-in feed system
- Six-digit resettable counter
- Processes up to 8,000 forms per hour
- Handles forms up to 14" long
The FD 2006 AutoSeal® offers speeds of up to 8,000 forms per hour and the ability to process forms up to 14" long. Standard features include a color touchscreen control panel, insulated fold plates to reduce noise, and a drop-in top feed system, all in a compact and sleek desktop design. Fold plates are pre-marked for standard folds for 11" and 14" form sizes, and can be easily adjusted for custom folds. Fold types include Z, C, Uneven Z and C, Half and custom folds. Pressure seal mailers can be used for virtually any application that can be printed on one form, including checks, invoices, school reports, tax forms and appointment notices. Proudly made in the USA, the FD 2006 is built with proven Formax technology, and the durability to last.
DESIGN
- Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use
- Drop-In Feeding System: Dependable feeding of forms with no paper fanning required

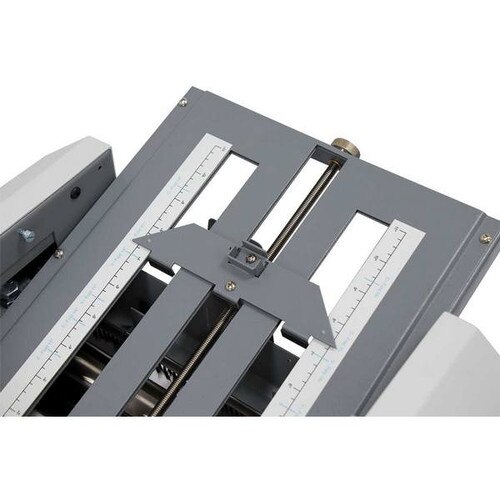

- Easy to Adjust Fold Plates: Clearly marked and easy to adjust for popular and custom folds
- Adjustable Catch Tray: Accommodates any fold type, stacks forms neatly and sequentially
- Insulated Fold Plates: Top, side covers, and fold plates are insulated to reduce noise
STANDARD FEATURES
- Color touchscreen control panel
- Drop-in feed system
- Infeed holds up to 250 forms
- Easy to adjust fold plates
- Paper jog control to inspect fold
- Processes forms up to 14" long
- Folds Z, C, uneven Z and C, half and custom folds
- Compact, rugged tabletop design
- Insulated to reduce operating noise
- Six-digit resettable counter
- Adjustable catch tray
- Adjustable infeed side guides
OPTIONS
- P2006: Package that includes the FD 2006, 18" conveyor and cabinet
- 18" Conveyor with photo eye
- Reverse Stacking Conveyor: Allows for A-to-Z input and A-to-Z output
- Locking Cabinet with casters
- 402 Series Jogger
SPECIFICATIONS
| Hopper Capacity | Up to 250 forms 20# |
|---|---|
| Fixed Speed | Up to 8,000 forms per hour, based on 11" Z fold |
| Paper Size | Up to 8.5" W x 14" L (216 x 356mm) |
| Fold Types | Z, C, Uneven Z and C, Half, Custom |
| Monthly Duty Cycle | Up to 75,000/month |
| Dimensions | 25.75" L x 16.5" W x 14.25" H (654 x 419 x 362mm) |
| Dimensions with 18" Conveyor & Cabinet | 46" L x 22" W x 44" H (1168 x 559 x 1118mm) |
| Weight | 88.5 lbs (40kg) |
| Power | FD Model: 120 Volts AC 50/60Hz FE Model: 220 Volts AC 50/60Hz |
| Document Sequence | Standard sequence is A-to-Z input, Z-to-A output |
| Certifications | UL, CE, and CUL Approved |
| Made in USA | |
U.S. Patents 5,772,841 5,865,925 5,968,308 6,264,592
