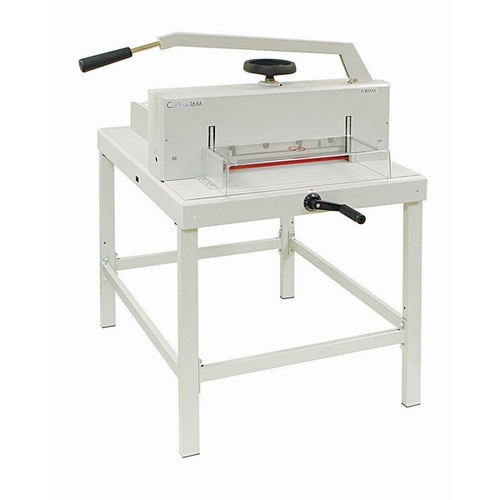

Formax Cut-True 16M Manual Paper Cutter
Details
Details
Cut-True 16M
MANUAL PAPER CUTTER
- Crisp, Accurate Cuts - High-quality hardened steel blade for razor sharp cuts, time after time
- LED laser line for precision cutting
- Cuts sheets up to 18.7" wide, stacks up to 3.15" high
- Hardened steel cutting blade
- Front and rear safety covers
- Geared clamping system
The Cut-True 16M Manual Paper Cutter combines accuracy with safety and user-friendly features. Using its hardened-steel Guillotine blade and lever-activated blade arm, it has the strength to cut through paper stacks up to 3.15" high and 18.7" wide. The LED Laser Line shows operators exactly where the blade will cut, and the spindle-guided back gauge and calibrated scales allow for precise adjustments. Safety is also a top priority with front and rear plexi covers, blade lock, external blade depth adjustment, blade change safety tool, and a wooden paper push for safe alignment. These features are all housed in a rugged all-metal stand with feet for tabletop use.
DESIGN
- Rugged All-Metal Stand: Also includes table top feet so you can cut anywhere
- Geared Clamping System: Large clamping wheel easily keeps paper in place for accurate cutting
- LED Laser Cutting Line: Shows exactly where the blade will cut, allowing for precise adjustments
- Safety Cover & Back Gauge Crank: Plexi cover for safety and spindle guided back gauge for accuracy
- High-Quality Hardened Steel Blade: Cleanly cuts paper stacks up to 5/8" high and up to 14.5" wide
- Tool Kit Included: Wooden paper push and blade change tools for safe adjustments
STANDARD FEATURES
- High-Quality hardened steel blade
- Cuts paper stacks up to 3.15" tall and 18.7" wide
- LED laser cut line
- SUPPLIES
- 16M-10: Replacement Blade
- 16M-20: Replacement Cutting Sticks, pkg of 8
- Front and rear safety covers
- Manual lever cutting arm
- Geared clamping system
- Spindle-guided back gauge crank
- Calibrated scale for fine adjustment in inches and metric
- Common paper sizes clearly marked
- Solid steel blade carrier
- Wooden paper push for safe alignment
- All-metal stand and tabletop feet included
- Blade depth adjustment from outside machine
- Easy blade change access from front
- Blade change safety tool included
SPECIFICATIONS
| Cutting Action | Manual lever handle |
|---|---|
| Maximum Cutting Width | 18.7" (475mm) |
| Maximum Paper Stack Height | 3.15" (80mm) |
| Length Behind Blade | 19.37" (492mm) |
| Length in Front of Blade | 8.25" (210mm) |
| Narrow Cut | .99" (25mm) |
| Table Size | 30.3" W x 31.5" D (770 x 800mm) |
| LED Laser Cut Line | Yes |
| Clamp Style | Spindle-guided clamping wheel |
| Back Gauge Adjustment | Manual crank |
| Back Gauge Reading | Scale, in inches and metric |
| Blade Change Safety Tool | Included |
| Dimensions | 46.25" H x 39" W x 35" D (1175 x 991 x 889mm) |
| Weight | 199 lbs. (90kg) |
| Safety Certifications | CE approved |
