Formax AP2 Monochrome Digital Address Printer
Details
Details
AP2
MONOCHROME DIGITAL ADDRESS PRINTER
Imaging area up to 2" x 15" is ideal for printing outgoing address on envelopes with pre-printed return address
- Prints up to 22,000 #10 envelopes per hour
- 4-pen stitched single-head design
- Imaging area up to 2" H x 15" L
- Up to 600 x 600 DPI
- Duty cycle up to 500,000 per month
The AP2 Digital Address Printer produces up to 22,000 envelopes per hour with variable print resolutions up to 600 DPI. Its 4.5" color touchscreen allows users full control of functions, including storing and recalling common print jobs, up to 16GB. The integrated feeder holds up to 500 envelopes at a time, and can handle materials up to 1/4" thick. The fixed print head uses 4 high-capacity thermal inkjet cartridges, producing an image area up to 2" x 15", and can be adjusted to a vertical print range up to 10.75". Features include on-screen ink monitoring, USB 3.0/LAN connectivity, TrueType compatibility, spot color capability, and batch/job/lifetime counters.
Design

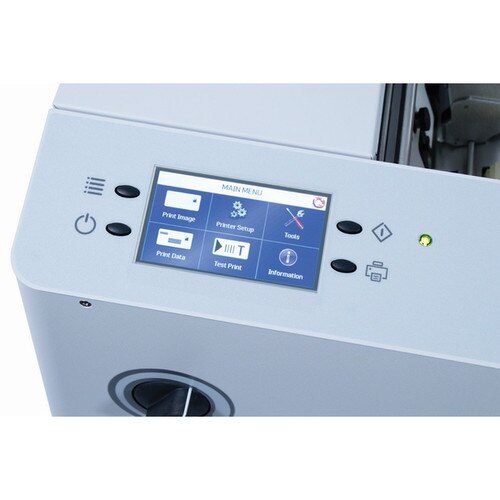

- User-Friendly Touchscreen Color touchscreen with adjustable backlight and easy navigation
- Integrated Envelope Feeder Holds up to 500 envelopes and can be refilled on the fly

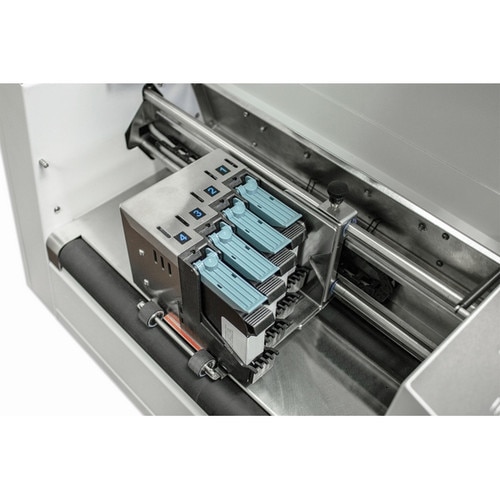

- 4-Pen Stitched Single-Head Design Uses 4 high-capacity thermal inkjet cartridges
- Optional Conveyor/Stacker 3-foot conveyor/stacker with tabletop legs and catch tray
- Adjustable Print Head Height Adjustable to accept media up to 1/4" thick using the dial on the side
STANDARD FEATURES
- 4.5" color touchscreen
- Prints up to 22,000 #10 envelopes/hour
- Fixed, 4-pen stitched single-head
- Job memory up to 16GB
- Integrated feeder, up to 500 envelopes
- Variable print resolution, up to 600 DPI
- Batch, job, and lifetime counter
- On-screen ink monitor
- Uses 4 high-capacity inkjet cartridges
- One-pass printing
- Image area up to 2" H x 15" L
- TrueType enabled
- Spot color: blue, red, green, invisible
- Prints on coated and uncoated stocks
OPTIONS
- AP-05 3-foot Bi-Directional Conveyor/Stacker
- Bulk Mailer Software
- Thermal Inkjet Cartridges
SPECIFICATIONS
| Print Technology | Thermal inkjet, 4 high-capacity cartridges* |
|---|---|
| Addressing Speed | Up to 22,000 #10 envelopes/hour Up to 30,000 postcards/hour |
| Print Quality | Up to 600 x 600 DPI |
| Imaging Area | Up to 2" H x 15" L (51 x 381mm) |
| Material Size | Min: 5" L x 3" W (127 x 76mm) Max: 15" L x 13.5" W (381 x 343mm) |
| Material Thickness | Up to 6.3mm / 1/4" |
| Duty Cycle | Up to 500,000 per month |
| Memory | Up to 16GB |
| Print Head Layout | 4 pen stitched design |
| Fonts | All True Type fonts available on PC |
| Feeder Capacity | Up to 500 #10 envelopes |
| Print Orientation | Right to left |
| Software | Driver for Windows 7 and higher |
| PC Interface | USB 3.0, Ethernet |
| Dimensions | 23" L x 22" D x 19" H (58 x 56 x 48cm) |
| Weight | 60lbs (27kg) |
| Power | 115VAC 50/60 Hz |
* Printer ships with 4 AP22 high-capacity ink cartridges
