Akiles Flexi Punch-M Manual Modular Paper Punching for Coil, Comb & Wire-O Book Binding

SKU: AMFlexiPunch-M
  • Up to 25 Sheets Per Punch
  • Options for 4:1 Coil, Comb, 2:1 & 3:1 Wire
  • Manual Interchangeable Punch Dies
  • 1 Year Warranty


The FlexiPunch-M is an innovative modular punching machine with manual operation and an affordable price that gives you the binding options you need in everyday work. You can do a coil binding job, and moments later squeeze in a wire or comb binding project using the same primary punch. The high-quality precision die sets available with this machine will last for years of production. One die of your choice is provided with the unit.

  • High Volume Manual Punch Capacity: Up to 25 sheets of 20lb paper per lift.

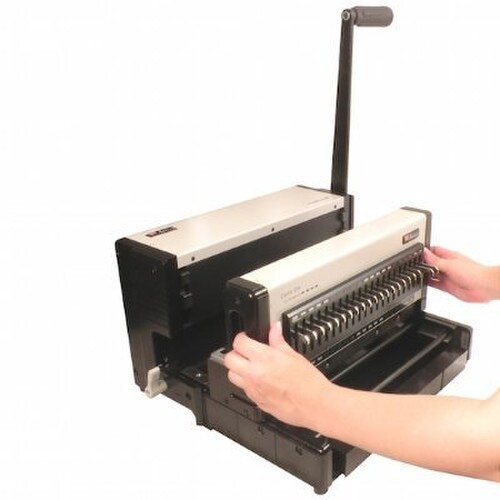

  • Interchangeable Die Sets with Quick Die Change Design: Easily change from one punch pattern to another within seconds, no tools needed!
  • Fully Disengageable Pins on all Dies: Allows punching of all paper sizes without partially punched holes at either end.
  • Choice of 4 Different Punch Dies: Choose from Comb (rectangular holes), Wire 2:1 (square holes), Wire 3:1 (square holes) and Coil 4:1 (0.2475") (round holes).

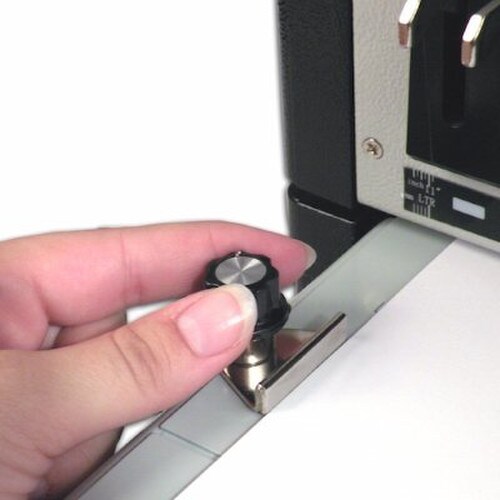

  • Adjustable Depth Margin: Available for all punch dies, this key feature provides the correct punch margin depth for each element or book size.
  • 12" Single Punch Length with Open Ends: Enables easy punching of Letter or A4 sizes, as well as even longer sheet sizes.
  • Rugged Heavy-Duty Design: All metal construction, including heavy cast side plates. Non-skid feet.
  • Weight: 24 Lbs
  • One Year Warranty
Available Die Sets & Hole Shape:COMB (rectangular)
WIRE 2:1 (square)
WIRE 3:1 (square)
COIL 4:1 (0.2475”) (round)
Single Punch Capacity:Up to 25 sheets of 20 lbs paper
Single Punch Length:12” (Letter or A4 size)
with open ends for longer sheets
Fully Disengageable Pins:Yes (on all die sets)
Adjustable Depth Margin:Yes (4-step adjustment)
Machine Dimensions:14.75" L x 20.5" W x 21.25" H (machine with handle)
20" L x 18.5" W x 13.5" H (carton)
Die Set Dimensions:16.5" L x 4.75" W x 6.75" H (die set)
18.5" L x 6.75" W x 10.5" H (carton)
Machine Weight:24 Lbs
Die Set Weight:18 Lbs
Warranty:One Year
