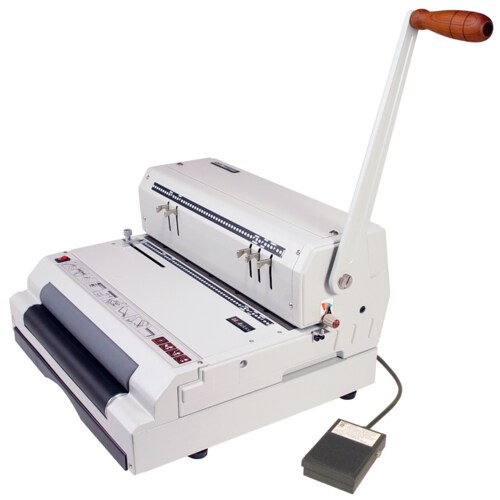

Akiles CoilMac ECI 4:1 Coil Binding Machine with Electric Inserter
Details
**Voted most durable** - The CoilMac-ECI is the strongest small coil bookbinding machine available. The CoilMac ECI punches and coil binds books from 6mm (1/4") to larger thick books up to 35mm (1-1/2") with the Electric Inserter, and up to 50mm (2") when inserting coils by hand.
Akiles CoilMac machines are built with a rugged all metal construction and have a 1 Year Warranty.
Features:
- Round Holes: Standard 4mm round holes.

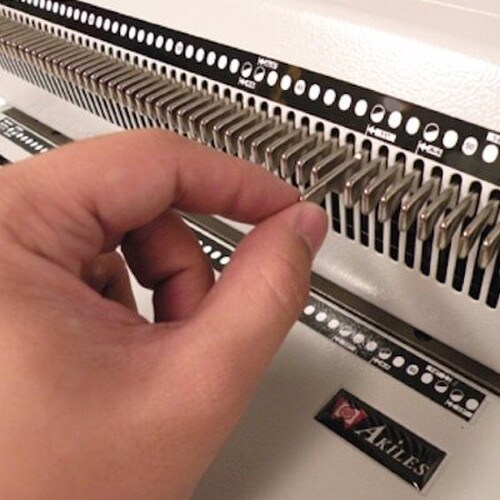

- 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
- Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
- Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
- Includes Coil Diameter Selector: Easily choose the right size coil for your books.
Specifications:
- STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
- Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
- High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).

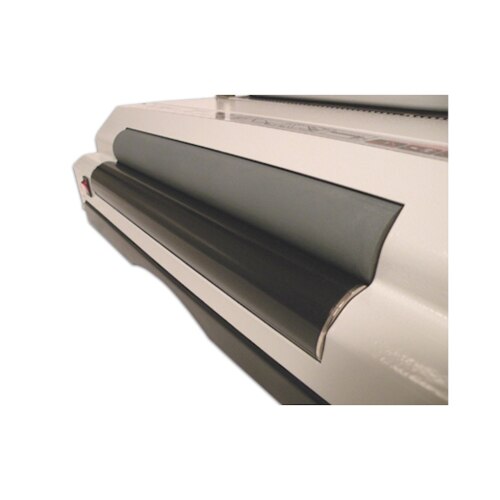

- Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8" EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
- Side Margin Control: Provides an evenly centered punch for all document sizes.
- Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
- Large Waste Drawer and Non-Skid Feet
- CE Certification: All components certified & approved by CE for most stringent safety requirements
- ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
Model: | CoilMac-ECI | CoilMac-ECI+ |
Pitch Available: | Standard 4:1 (0.250”) [ Other pitches also available upon special request ] | Letter 4:1 (0.248”) |
Operation: | Punching - Manual Inserting - Electric (with built-in Heavy-Duty Electric Roller) | |
Single Punch Capacity: | Up to 20 sheets for 20 lbs paper* Up to 2.6mm for hardboard (28-sheet equivalent thickness)** | |
Suggested Binding Capacity: | Up to 7/8" (electric) Up to 2" (manual) | Up to 1" (electric) Up to 2" (manual) |
Single Punch Length: | 13" (53 holes) | 13" (54 holes) |
Hole Size: | Round (4mm) | Oval (4mm x 5mm) |
Disengageable Pins: | 5 out of 53 | All 54 |
Weight: | 52 lbs - Free Shipping! | |
Warranty: | 1 Year |
