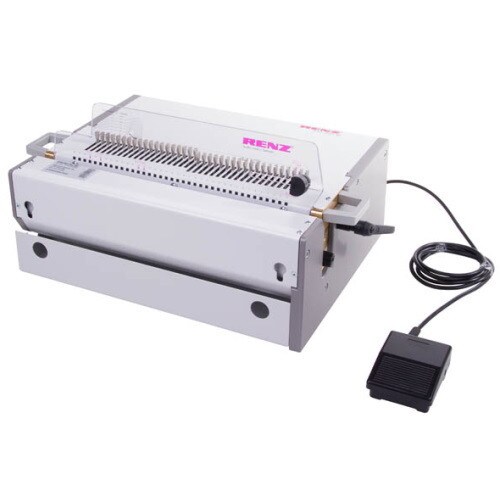

- 24 Years and Thousands of Satisfied Customers Renz DTP-340 Interchangable Punch with Die
Details
Reliable, heavy-duty, desktop punching machine. The modular design makes it very versatile for all types of book and calendar production.
- Punching dies for all types of ring wire, plastic comb, coil and calendars.
- Punch a wide range of mixed stocks
- Fast die changes
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3(1)
- Vertical paper feeding for precise punching
- Compact simple design, one machine can punch and bind all jobs when using Renz MBS binding modules
Maximums:
- Width: 340 mm
- Punch up to (1): 3.5 mm
Output:
- Mechanical cycles per hour: 1,200
- Max. punched sheets per hour: 20,000
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.
(1) Dependent on the die type.
Features:
- Strong and reliable German engineered punching dies with a working width of 340 mm. Available in a wide range of different punch patterns.
- Simple vertical loading system for quick and effortless die changes.
- QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without the need to remove the die.
- The depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm(1). This adds strength to the bound edge.
- Large waste tray which can be easily removed allowing emptying from the front or the side of the machine.
Specifications:
| Mechanical cycles per hour | 1,200 |
| Min. punching width | 10 mm |
| Max. punching width | 340 mm |
| Min. unpunched length | 40 mm |
| Max. unpunched length | 800 mm |
| Max. punching thickness | 3.5 mm (1) |
| Punching operation | Foot pedal |
| Punch dies available | 3:1, 2:1 ring wire, calendar, coil, plastic comb |
| Die type | Standard |
| Selectable punch pins (QSA) | Yes |
| Bespoke dies | No |
| Variable margin depth | Yes (1) |
| Die changeover time | 1 min |
| Machine dimensions L x W x H | 360 x 490 x 250 mm |
| Machine weight | 31 kg (2) |
| Machine packing dimensions L x W x H | 620 x 480 x 345 mm |
| Machine weight with packing | 34.5 kg (2) |
| Power requirement | 230/250V / 50 Hz / 250W 115/200V / 60 Hz / 250W |
| Warranty | 1 Year Manufacturer's Warranty |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.
(1) Dependent on the die type.
(2) Weight excluding the die.
1 minute die change! The die is secured with quick release screw on each end of the machine. Handles are built in for easy removal.
No adjustment needed after die change when using the same paper size . Each die comes complete with top cover, back stop, side guide, and depth (margin) adjustment so that the die maintains all of its settings when it is reinstalled.
Instant pin selection. Externally selectable pins for fast changes in paper size. Oval holes for plastic spiral binding makes the binding process much easier.
Increased punching power - up to 35 sheets. Adjustable punch margin can be set for thick or thin books. High quality punching dies are built to last.
