Phoenix 2700 DHP Dual Heat Laminator

$2,985.00
SKU: MRL-P2700-DHP

Ships via Truck

Details

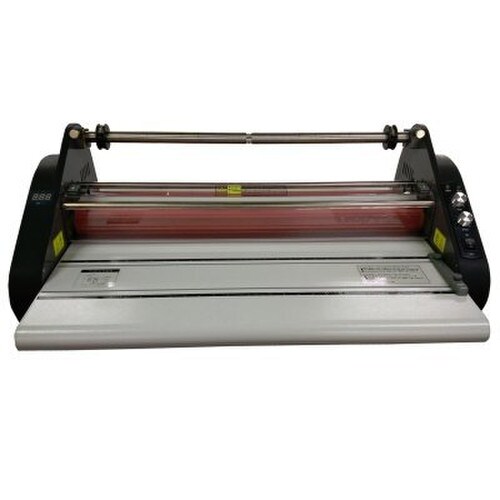

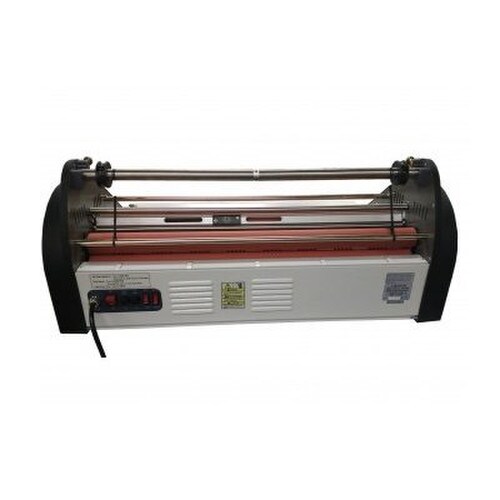

Phoenix 2700-DHP Dual Heat Laminator

The Phoenix 27" Production Model is a smart choice for production environments looking for an economical, easy to use laminator. The tabletop design is great for smaller working areas. Designed to offer maximum flexibility, this dual-heat laminator allows the use of either 1" or 2-1/4" core laminating films in thicknesses of 1.5 mil to 10.0 mil. The unit can also be gapped incrementally at settings of 1/16", 1/8", 3/16" and 1/4" to accomplish mounting on a large variety of substrates.

With safety and energy savings concerns in mind, the Phoenix 2700 includes the latest innovations. Safety measures include: an advanced safety shield, a safety feed table, and a standby mode. To conserve energy, the Phoenix laminator machine will drop into a sleep mode if unit has been idle for 1/2 hour. If there is no activity for 2 hours, the heaters turn off for safe and easy use.

FEATURES OF THIS PHOENIX LAMINATOR:

  • Laminates up to 27” Wide
  • Adjustable Supply Roll Tension
  • Accepts 1.5 to 10.0 Mil Laminate
  • Roller can Gap from 1/16” to 1/4” for Mounting
  • Cooling Fans for Heavier Films
  • Auto Shut-Off with 175 Hold Temperature
  • Clear Polycarbonate Safety Shield
  • Chain and Sprocket Drive
  • Reverse Feature
  • Heavy-Duty 24V DC Motor
  • High Quality Silicone Heated Laminating Rollers
  • Easy Alignment of Top and Bottom Rolls with Standard Widths marked on Supply Shaft
  • Feed Tray with Paper Guide

SPECIFICATIONS:

  • Film Width Capacity: 27”
  • Speed: 0 - 10 feet per minute
  • Warm-up Time: 20 minutes
  • Film Supply Core Size: 1” & 2-1/4“
  • Machine Dimensions 36.5” W x 22.5” H x 16” D
  • 1 Year Manufacturer Warranty
  • Machine Weight: 120 lbs.
  • Heater Wattage: 1600 watts
  • Power Requirements: 13.3 amps, 120VAC, 60Hz
