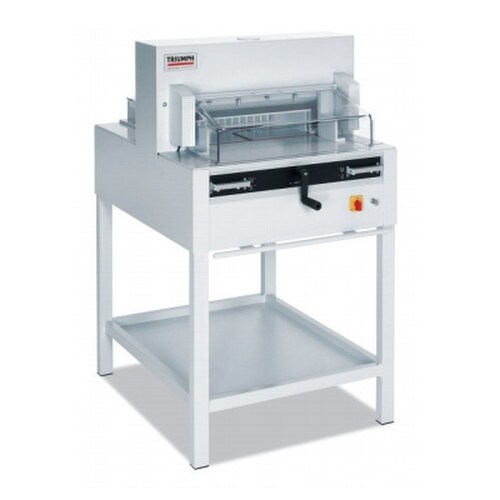

MBM-Triumph 4850 automatic 18-7/8 inch paper cutter
MBM-Triumph 4850 automatic cutter
with electric blade and clamp drive,
the automatic clamp can be lowered or raised independently from blade
spindle-guided back gauge with calibrated crank
precision back gauge measuring scale on front table
optical cutting line
dual side guides on front and rear tables
solid steel blade carrier
stand with storage shelf
UL and C UL approved
SAFETY FEATURES
external blade depth adjustment
two-hand operation
transparent safety guards on front and rear tables
automatic blade and clamp return from any position
disc brake for instant blade stop
safety lock with key and main switch
4850 automatic cutter
Cutting width 18 7/8"
Cutting height 3"
Narrrow cut 1 1/4"
Cutting length behind blade 17 11/16"
Table length in front of blade 13 5/8"
Motor 2 hp
Power supply 115 V, 60 Hz*
Dimensions (D x W x H) 38 1/4" x 29 3/4" x 48 1/2"
Shipping weight 556 lbs.
* 20 amp dedicated line required
|
