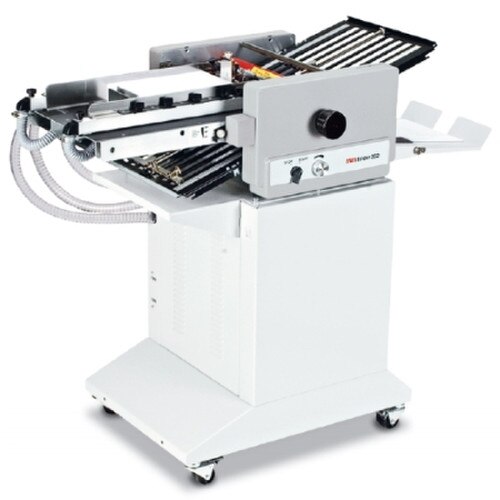

MBM 352S Suction Feed Folding Machine.

$13,399.00
SKU: MBM352S

Ships via Truck

Details

High speed, air feed folder ideally suited for high-volume digital production.

Air suction feed system, suitable for coated stocks. Adjusts in seconds for standard and custom folds. Variable speed control. Powered exit conveyor.

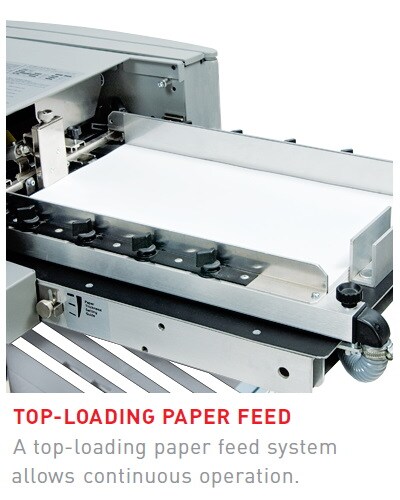

Bottom-feed, top-loading design for continuous reloading and dependable sheet separation. Polyurethane foam rollers eliminate the need for fold roller pressure settings

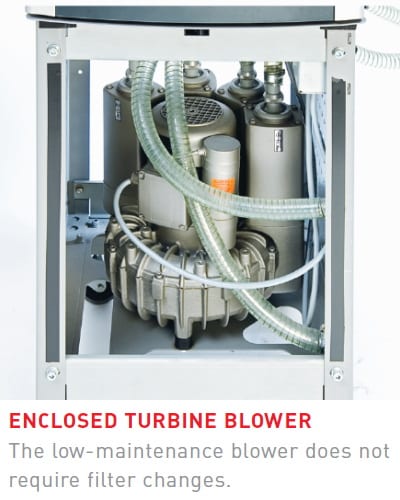

Turbine blower fully enclosed for quiet operation. 2 fold plates. Heavy-duty, non-flexing side frames. Needle bearings for high speed production. Mounted on casters.

Optional extended delivery system, crossfold for right-angle folding, and slitting, scoring, and perforating attachments.

Specifications:

Electrical requirements: 115 V, 60 Hz
Dimensions (D x W x H): 22-1/4" x 51-1/4" x 43-1/2"
Shipping weight: 312 lbs.

Accessories: (Call us at 1-866-455-9900)

  • AC0623: Silencing covers
  • AC0630: Slitter
  • AC0631: Scorer, narrow
  • AC0632: Scorer, medium
  • AC0633: Scorer, broad
  • AC0646: Extended delivery
  • AC0690: Standard perforator, short
  • AC0691: Standard perforator, medium
  • AC0692: Blade perforator, short
  • AC0693: Blade perforator, medium
  • AC0694: Blade perforator, long
