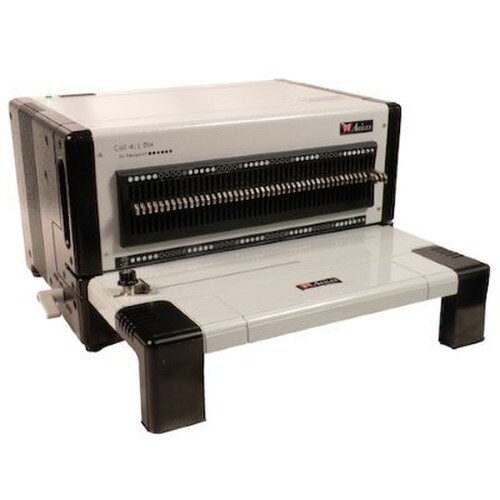

FlexiPunch-E Heavy-Duty Electric Modular Paper Punch with Interchangeable Die for book binding
|
|
FlexiPunch-E
Heavy-Duty Electric Modular Punch with Interchangeable Die Feature
[NEW PRODUCT!]
FlexiPunch-E is a versatile modular punching machine with an affordable price that gives you the binding options you need in everyday work. You can do a coil binding job, and minutes later squeeze in a wire or comb binding project using the same primary punch. The high-quality precision die sets available with this machine will last for years of production. One die of your choice is provided with the unit.
|
Suggested Supplemental Modules
|
We offer a variety of supplemental modules to the FlexiPunch-E, that will help you complete your binding jobs faster and easier.
Shown at right on top of the FlexiPunch-E is our Finish@Coil E1 Coil Inserter/Crimper Module. This combination is the world’s first to allow an operator to punch the sheets, insert & crimp coils (sizes 6mm-50mm) all by electrical power! The Finish@Coil E1 footprint fits right on top of the FlexiPunch-E to save space. It can also be placed next to the FlexiPunch-E so 2 operators can work the job simultaneously.
Similar modules are available for wire binding (WBM532) and comb binding (CBM650) as well. |
| |
 High Volume Punch Capacity: Up to 20 sheets of 20lb paper per cycle. Foot pedal operated. |
| Heavy-Duty Motor & Gearbox: Provides more than enough punch power for all die sets. |

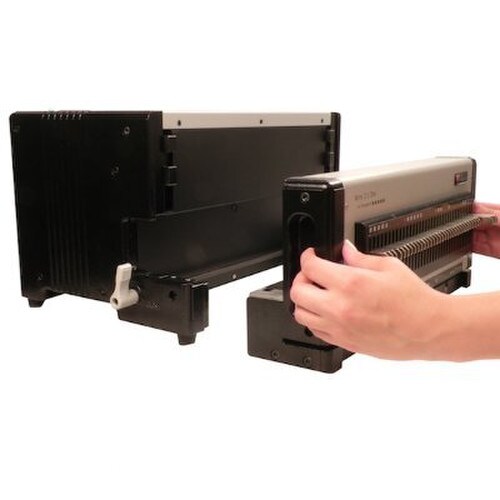

| Interchangeable Die Sets with Quick Die Change Design: Easily change from one punch pattern to another within seconds, no tools needed! |
| Fully Disengageable Pins on all Dies: Allows punching of all paper sizes without partially punched holes at either end. |
| Choice of 4 Different Punch Dies: Choose from Comb (rectangular holes), Wire 2:1 (square holes), Wire 3:1 (square holes) and Coil 4:1 (0.2475") (round holes). |

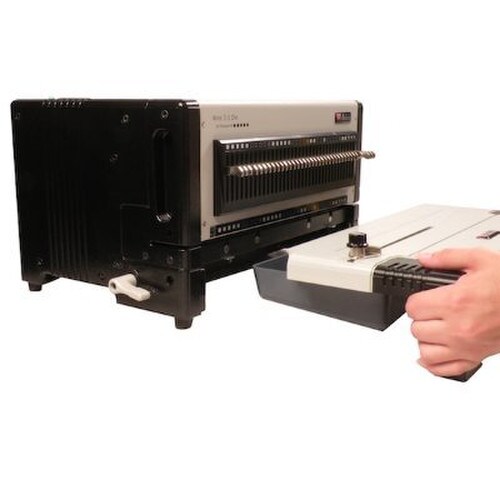

| Adjustable Depth Margin: Available for all punch dies, this key feature provides the correct punch margin depth for each element or book size. |
| 12" Single Punch Length with Open Ends: Enables easy punching of Letter or A4 sizes, as well as even longer sheet sizes. |
| Built-in Anti-Jam (Reverse) Feature: When sheet overload is detected, machine automatically retracts and stops punch operation to avoid downtime. |
| Rugged Heavy-Duty Design: All metal construction, including heavy cast side plates. Non-skid feet. |
| Weight - 51 Lbs |
| One year warranty |
Specifications
| Model: |
FlexiPunch-E |
| Available Die Sets & Hole Shape: |
COMB (rectangular)
WIRE 2:1 (square)
WIRE 3:1 (square)
COIL 4:1 (0.2475”) (round) |
| Operation: |
Electric
(Foot Pedal operated) |
| Single Punch Capacity: |
Up to 20 sheets of 20 lbs paper |
| Single Punch Length: |
12” (Letter or A4 size)
with open ends for longer sheets |
| Motor & Gear Box: |
Heavy-Duty |
| Fully Disengageable Pins: |
Yes (on all die sets) |
| Adjustable Depth Margin: |
Yes (4-step adjustment) |
| Machine Dimensions: |
17.25" L x 16" W x 9.25" H (machine)
20" L x 18.5" W x 13.5" H (carton) |
| Die Set Dimensions: |
16.5" L x 4.75" W x 6.75" H (die set)
18.5" L x 6.75" W x 10.5" H (carton) |
| Machine Weight & Volume: |
51 Lbs & 2.91 Cbft |
| Die Set Weight & Volume: |
18 Lbs & 0.76 Cbft |
| Warranty: |
One year |
|
|
|
|
