- 24 Years and Thousands of Satisfied Customers Akiles CoilMac EPI+ Plus Electric Oval Hole Coil Binding Machine
Details
***Voted Most Durable***
With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI+ PLUS makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.
| Model: | CoilMac-EPI | CoilMac-EPI Plus |
| Operation: | Punching – Electric | |
| Inserting - Electric | ||
| Single Punch Capacity: | Up to 25 sheets for 20 lbs paper. | |
| Up to 2.6mm for hardboard | ||
| (28-sheet equivalent thickness)* | ||
| Suggested Binding Capacity: | Up to 7/8" (electric) | Up to 1" (electric) |
| Up to 2" (manual) | Up to 2" (manual) | |
| Single Punch Length: | 13" (53 holes) | 13" (54 holes) |
| Hole Size: | Round (4mm) | Oval (4mm x 5mm) |
| Weight: | 75 lbs | |
| Warranty: | 1 Year | |
| Hole Style: | Round Holes: Standard 4mm round holes. | OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. |
| Disengageable Pins: | 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-EPI very simple to use. | FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged. |
| Hole Pitch: | STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet. | LETTER 4:1 pitch (0.248”): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils. |
- All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
- Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
- High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
- Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.

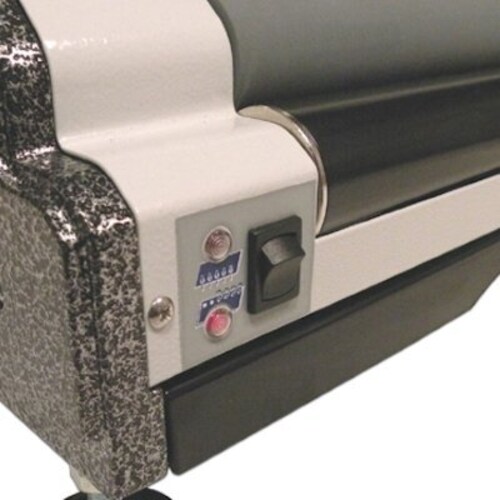

- Electric Reverse (Anti-Jam) Function: For trouble-free punching.

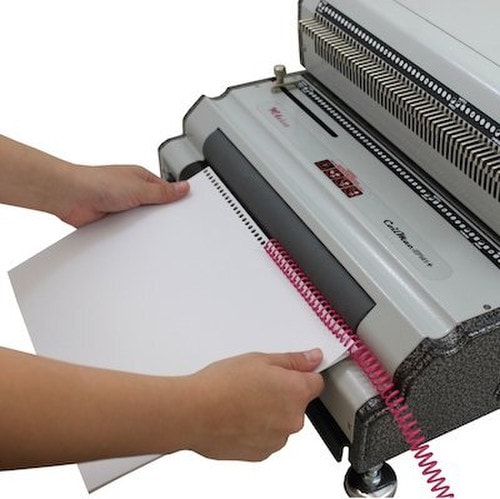

- Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8” EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
- Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
- U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.
- Side Margin Control: Provides an evenly centered punch for all document sizes.
- Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.

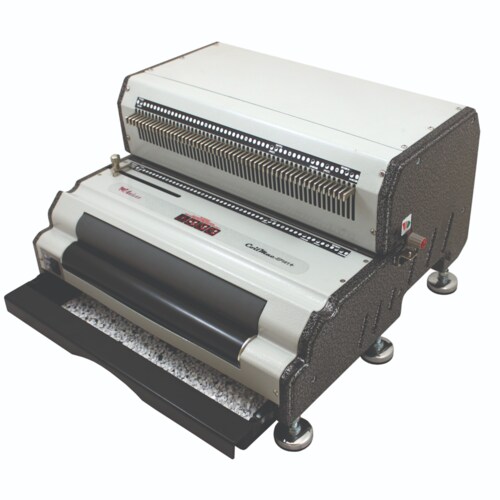

- Extra-High-Capacity Waste Drawer
- 6 Height-Adjustable Non-Skid Metal Feet
- CE Certification: All components certified & approved by CE for most stringent safety requirements.
- ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards
- Includes Coil Diameter Selector & Premium Oval Coil Crimpers
The Akiles Coil Mac-EPI Electric Coil binding punch & Electric coil inserter binder is the strongest coilbind book binding machine available. The Akiles Coil Mac-EPI spiral Coil Book binder punches round holes 4-1, four coil holes to each inch along the 11 inch side of the coil bound paper the hole pattern of 4-1 punches 44 round coil holes on letter size paper.
The Akiles Spiral Coil Mac-EPI Electric Coil binding punch & Electric coil inserter Book Binder is an open ended coil paper punch, allowing over size plastic coil book binding. The Akilies book binder Coil Mac EPI has coil die punch pins that can be pulled to allow for Spiral Coil Binding on the 8.5 or short side of the paper.
The Plastic coilbind Akiles punch will spiral coilbind small books from 6mm coil book bind 1/4" to larger thick Spiral books up to 1-1/2, 35mm. spiral coil plastic book binders. Akiles coil book machines are built with metal construction and have a 1 year warranty. Akiles Spiralastic Coil book binding machines are considered the best spiral plastic coil book binders.
Also known as: Spiralastic, Coilbind, Spiralbound
To order the Mac-EPI+ Plus Electric Coil Binding Punch & Electric Coil Inserter by phone, call 1-866-455-9900
